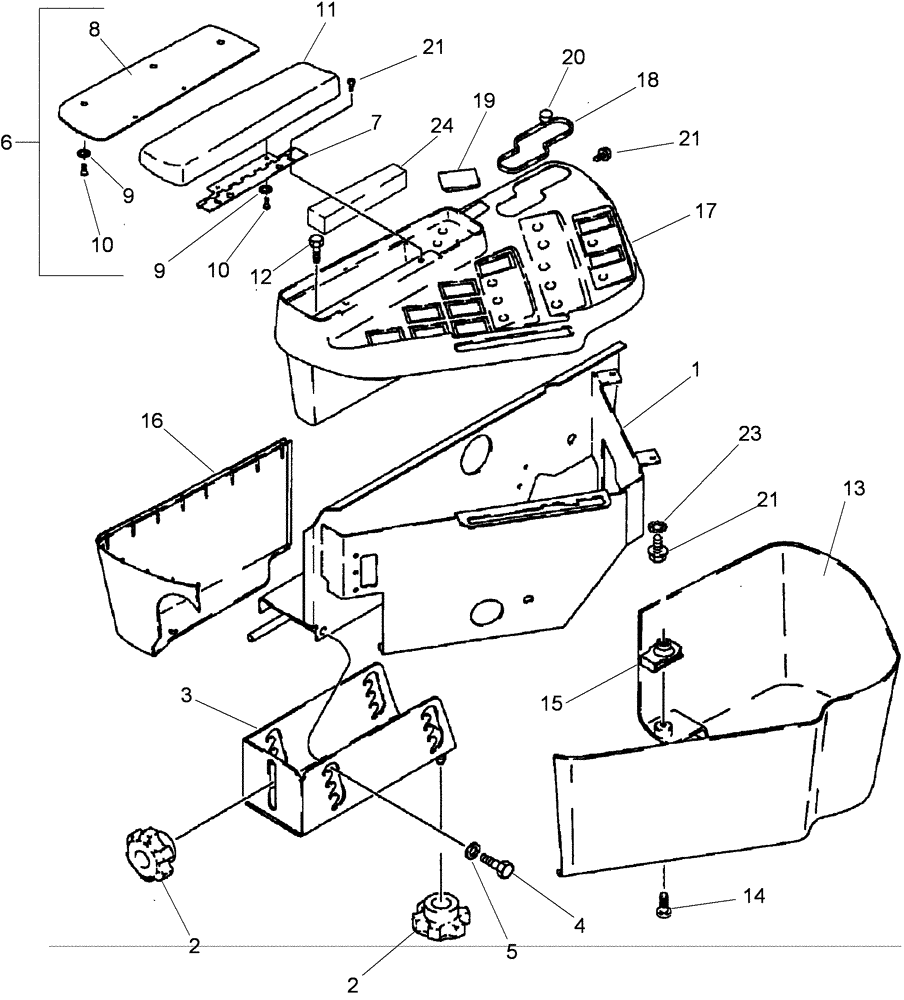

Запчасти Case IH 635 (90.160.04) - CAB CONSOLE, RIGHT HAND (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

345286A1

FRAME ASSY

1шт.

2

118781A1

KNOB

3шт.

3

117107A2

SUPPORT

1шт.

4

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

6

128970A3

ARMREST

Console, Inc. 7-11

1шт.

7

128849A2

HINGE

1шт.

8

185546A1

PLATE

1шт.

9

87481591

LOCK WASHER

5шт.

10

87481583

SCREW,M4 x 0.7 x 0.7mm

Arm Rest Back Plate

5шт.

11

128970A3

ARMREST

1шт.

12

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

13

87613245

COVER

Front

1шт.

14

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

4шт.

15

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

16

87613246

COVER

Rear

1шт.

17

87714835

COVER ASSY

Right Hand, Inc. 18

1шт.

18

128833A2

GUIDE

1шт.

19

245918C1

LENS

Rocker Switch Opening

3шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

Switch Opening

7шт.

21

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

6шт.

22

353-404

PLUG,Dome, .500" hole, Nylon

(Not Shown)

1шт.

23

493-81000

LOCK WASHER,Ext-Int Tooth, #10

2шт.

24

353-411

PLUG,Dome, 1.000" hole, Nylon

(Not Shown)

1шт.

25

282056A1

PLUG

(Not Shown)

1шт.
