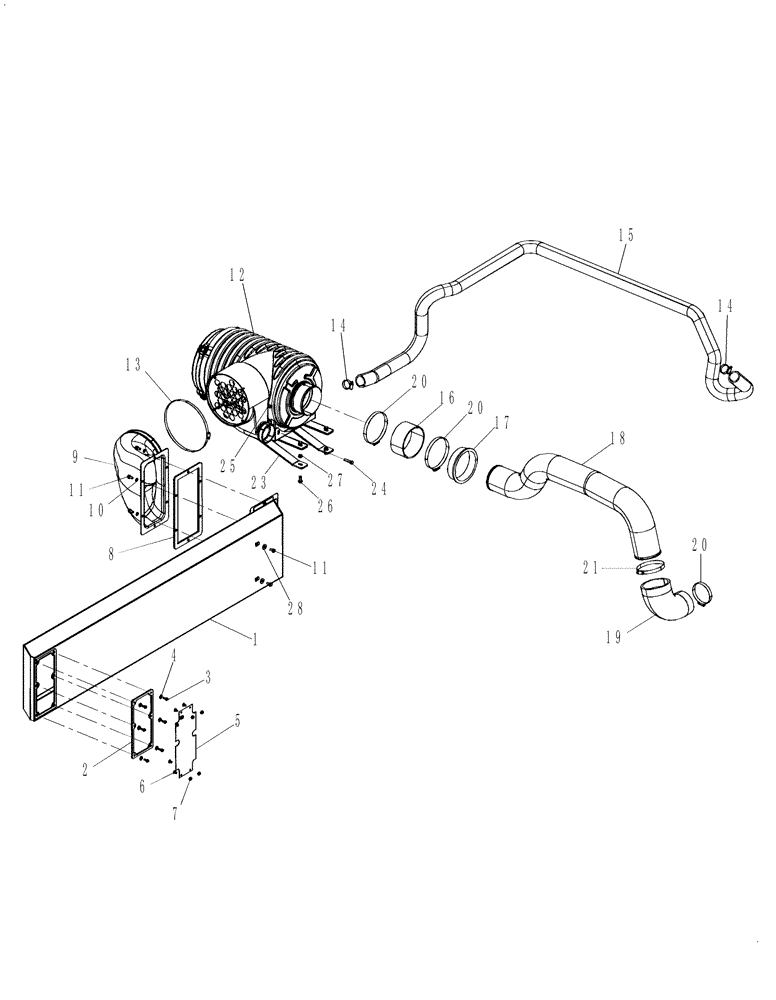

Запчасти Case IH 635 (10.202.01) - ENGINE AIR CLEANER SYSTEM (10) - ENGINE

1

84389153

AIR DUCT

DUCT,Air Cleaner

1шт.

2

374117A1

SEAL

Engine Air Inlet Duct

1шт.

3

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

6шт.

4

495-21031

WASHER,1/4"

6шт.

5

87418232

SCREEN

Screen Air Inlet Duct

1шт.

6

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

8

84210331

GASKET,6.4mm Thk

Air Duct Gasket

1шт.

9

87510512

AIR DUCT

1шт.

10

495-81265

WASHER,.391" x 5/8" x .065"

6шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

12

86998329

AIR CLEANER

1шт.

13

86636847

HOSE CLAMP,#180, 10.88/11.75 Type F Worm

1шт.

14

86625019

HOSE CLAMP,44mm - 67mm

2шт.

15

84262569

HOSE,50.8mm ID x 3048mm L

Air Cleaner Aspirator

1шт.

16

84145872

ADAPTER,152mm ID x 76.2mm L, EPDM

Straight 6"

1шт.

17

BN323687

INSERT

Insert 6" To 5" Rubber

1шт.

18

84222955

TUBE

Turbo Inlet

1шт.

19

281977A1

INTAKE AIR HOSE,101.60 mm ID, 125.50 mm ID x 166.00 mm

Turbo

1шт.

20

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

2шт.

21

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

1шт.

22

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

23

84169436

BRACKET

Air Cleaner , Air Duct

1шт.

24

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

25

231-1446

NUT,3/8" - 16, Gr 5

4шт.

26

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

28

496-41034

WASHER,.344" x 1" x .098", HDN

4шт.
