(90.160.01) - CAB FLOOR MAT AND INSULATION

Запчасти Case IH 635 (90.160.01) - CAB FLOOR MAT AND INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

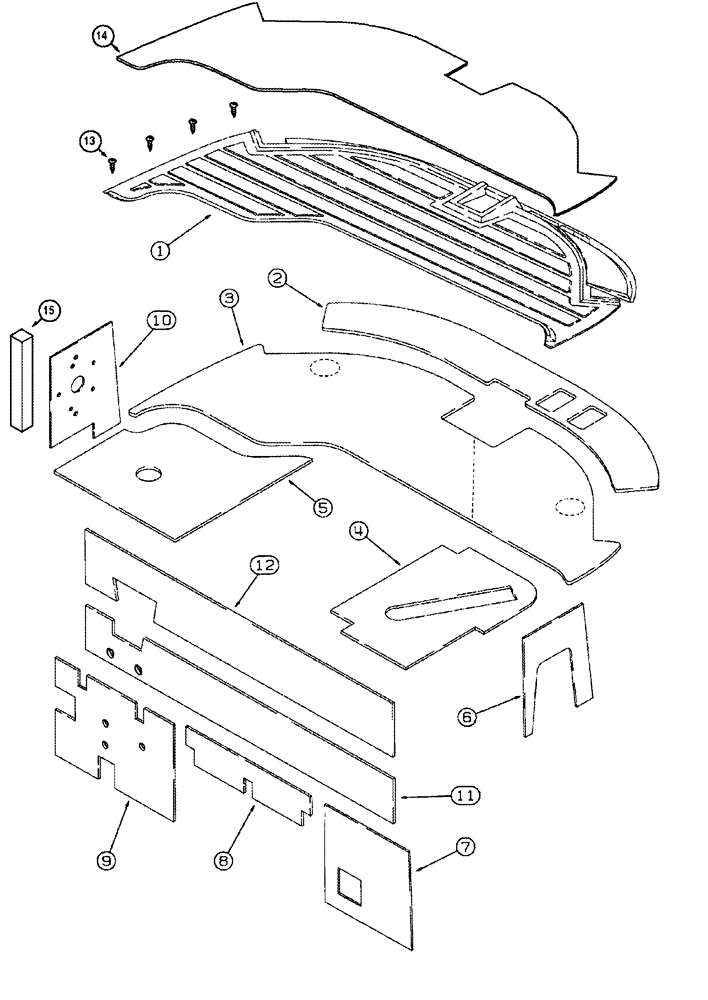

Схема запчастей Case IH 635 - (90.160.01) - CAB FLOOR MAT AND INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
6
2
8
9
5
1
13
15
10
11
14
7
12
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

331728A1

FLOOR MAT

Cab

1шт.

2

136485A1

MAT

Foor, Front

1шт.

3

136484A1

MAT

Floor

1шт.

4

125038A1

FOAM INSULATION

Floor, Right Hand Rear

1шт.

5

125037A2

FOAM INSULATION

Floor, Left Hand Rear

1шт.

6

247007A1

FOAM INSULATION

Lower Right Hand

1шт.

7

125040A2

FOAM INSULATION

Lower Right Hand Rear

1шт.

8

119486A1

FOAM INSULATION

Lower Rear Center

1шт.

9

125041A3

FOAM INSULATION

Lower Left Hand Rear

1шт.

10

125042A2

GASKET,6.4mm Thk

Pressurized Blower

1шт.

11

137944A2

FOAM INSULATION

Center Rear

1шт.

12

137945A1

FOAM INSULATION

Upper Rear

1шт.

13

266-53516

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

If Used

4шт.

14

182658A1

PROTECTOR,Cardboard

1шт.

15

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8"), Cut From 1971350C1

2шт.
