(90.118.07) - PLATES, TETHER CONNECTION AND FRAME TUBE COVER

Запчасти Case IH 635 (90.118.07) - PLATES, TETHER CONNECTION AND FRAME TUBE COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

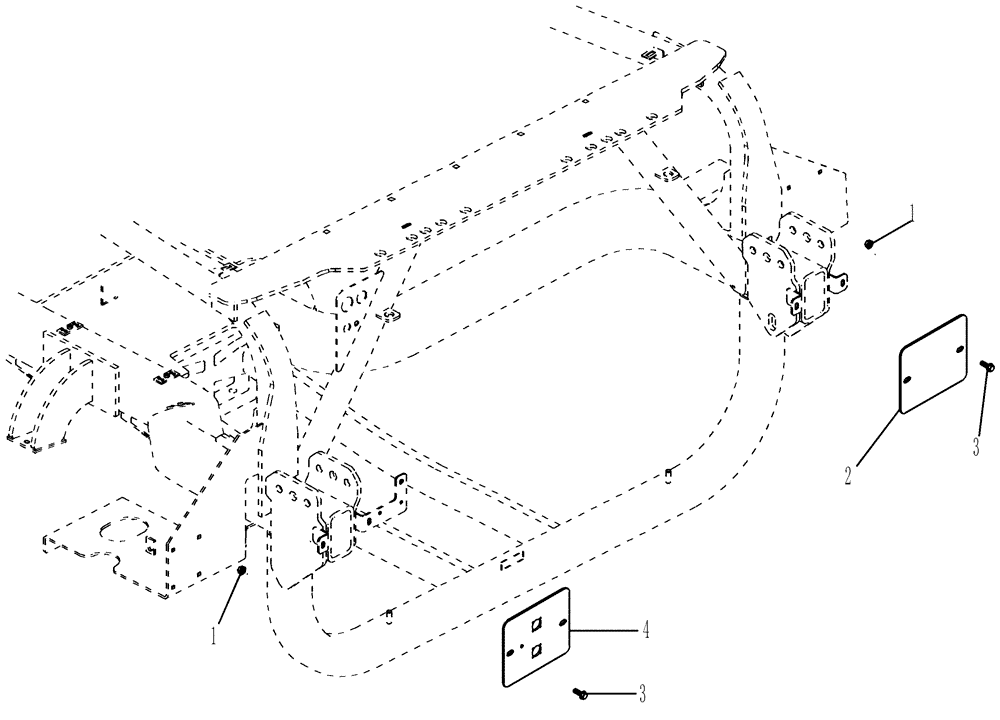

Схема запчастей Case IH 635 - (90.118.07) - PLATES, TETHER CONNECTION AND FRAME TUBE COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
2
3
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

231-5146

FLANGE NUT,3/8"-16

4шт.

2

87524574

PLATE

Frame Tube Cover, Right Hand

1шт.

3

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

4

87609239

PLATE

Tether Connection, Left Hand

1шт.
