(90.118.02) - LEFT HAND WHEEL SHIELD, 6 ROW NARROW

Запчасти Case IH 635 (90.118.02) - LEFT HAND WHEEL SHIELD, 6 ROW NARROW (90) - PLATFORM, CAB, BODYWORK AND DECALS

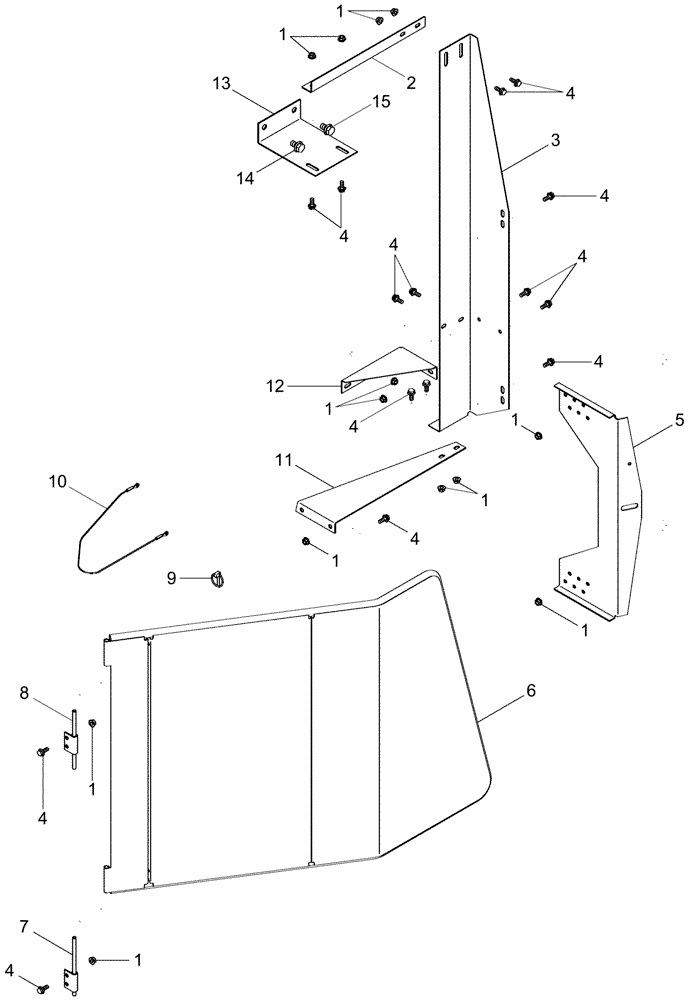

Схема запчастей Case IH 635 - (90.118.02) - LEFT HAND WHEEL SHIELD, 6 ROW NARROW (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
1
3
6
1
12
4
1
8
4
9
4
11
14
1
10
4
5
4
4
4
1
1
4
4
1
7
15
2
1
4
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

2

293733A1

ANGLE BAR

Tie

1шт.

3

293735A2

HOLDER

Support, Latch

1шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

20шт.

5

293736A2

BRACKET

Latch, Shield, Left Hand

1шт.

6

293727A1

GUARD ASSY.

Wheel, Left Hand

1шт.

7

87436460

HINGE

Shield, Lower

1шт.

8

87436459

HINGE

Shield, Upper

1шт.

9

A33497

LINCH PIN,4.76mm OD Pin

1шт.

10

132657A2

CABLE

Shield Tether

1шт.

11

293734A1

SHEET

Support, Lower

1шт.

12

302088A2

BRACKET

Shield, Left Hand

1шт.

13

293732A1

BRACKET

Upper

1шт.

14

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.
