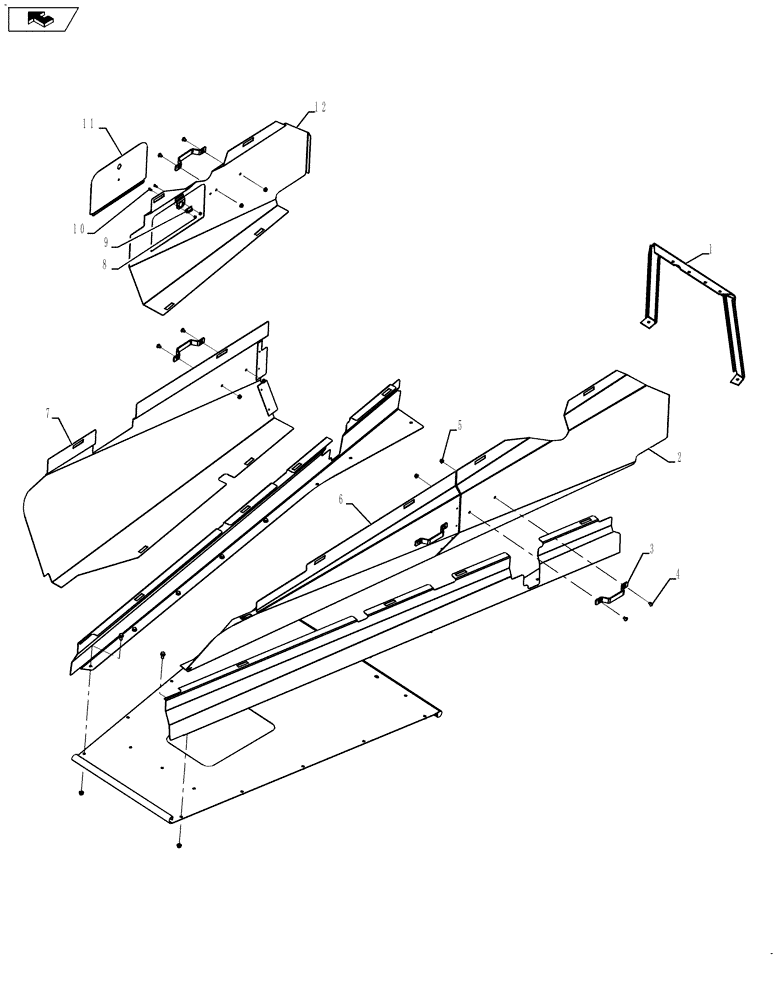

Запчасти Case IH 635 (90.118.01) - SIDE SHIELDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

1546138C4

SUPPORT

Plant Guard

1шт.

2

84152032

SHIELD

Front Right Hand Mud

1шт.

3

160638C2

HANDLE

Latch

4шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

8шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

6

84184619

SHIELD

Rear Right Hand Mud

1шт.

7

84421687

SHIELD

Rear Left Hand Mud

1шт.

8

88836

LOCK NUT,Prev Torque - Non-Dir, #10 - 24, Gr A

2шт.

9

292504A1

CASE

Receptical latch, Slam Lock

1шт.

10

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

2шт.

11

336152A1

DOOR

Water System Access

1шт.

12

84421683

SHIELD

Front Left Hand Mud

1шт.
