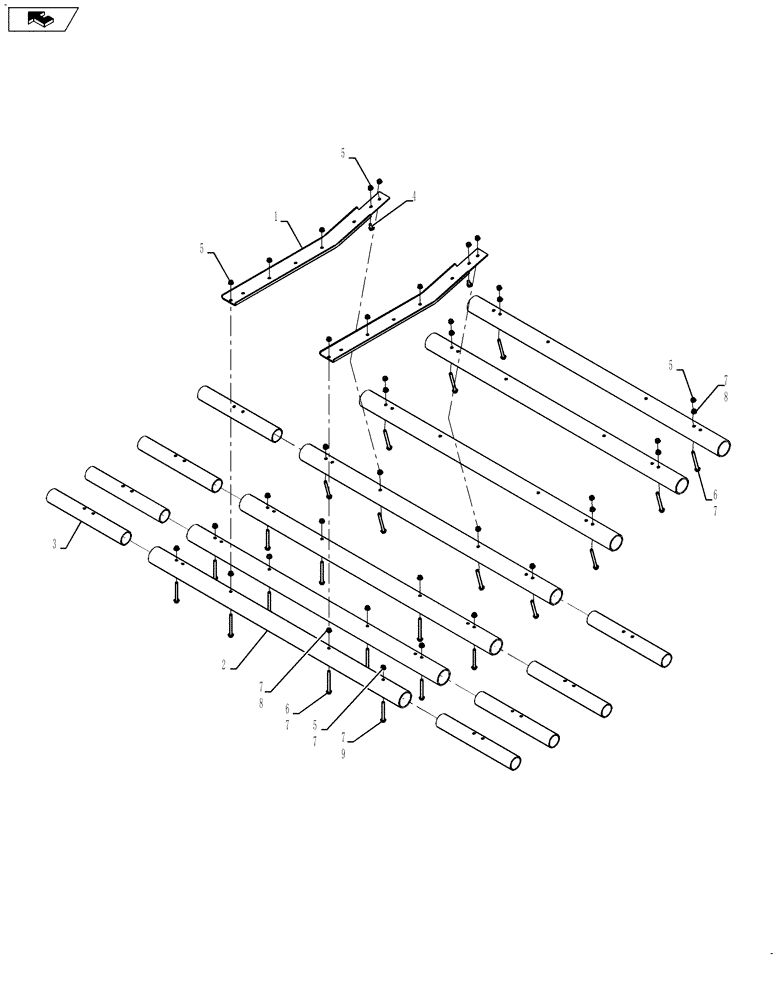

Запчасти Case IH 635 (90.114.03) - PLANT TUNNEL AND BELLY TUBES ANGLE AND GUIDES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84144369

SUPPORT

Channel,Plant Guard Front

2шт.

2

123956A1

TUBE,62.71 mm ID, 73.03 mm OD

Plant Guard

7шт.

3

123957A1

TUBE,52.5 mm ID, 60.33 mm OD, 424 mm Length

Plant Guard Ext

8шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

5

231-5146

FLANGE NUT,3/8"-16

24шт.

6

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

14шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

44шт.

8

425-106

NUT,3/8"-16, Cl 5

14шт.

9

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

8шт.
