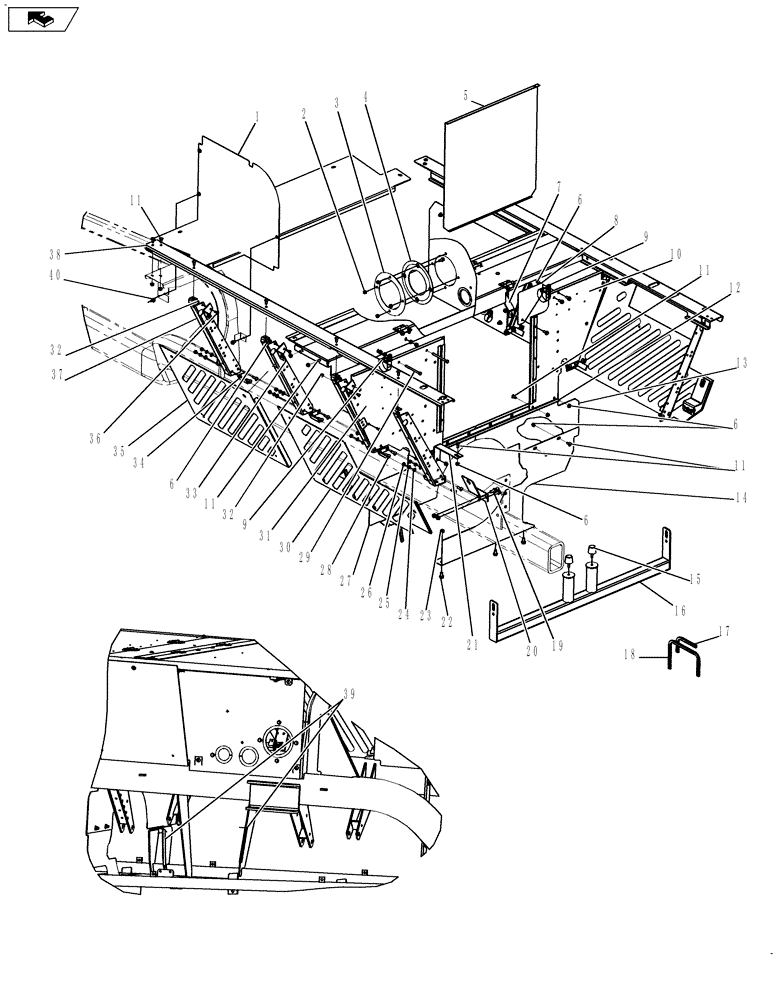

Запчасти Case IH 635 (90.102.01 [01]) - FRONT DECK, SHIELDS AND ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84191222

PLATE ASSY.

Cover

1шт.

2

231-1445

NUT,5/16"-18, GB

4шт.

3

84178907

CLAMP

1шт.

4

84153104

SEAL

Rubber Left Engine Co

1шт.

5

131623A1

SHEET

Center Panel Barrier

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

49шт.

7

87703134

BRACE

Engine Divider Panel

1шт.

8

87703133

PLATE

Engine Divider Panel

1шт.

9

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

2шт.

10

87715770

PANEL ASSY.

Left Hand Barrier

1шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

41шт.

12

84191578

ANGLE

Barrier Bottom

1шт.

13

84178621

SHIELD

Trash, Front Left Hand Upper

1шт.

14

84173525

SHIELD

Trash, Front Left hand Lower

1шт.

15

87109195

BUMPER,5/16" - 18, 38mm OD

Rubber

2шт.

16

87407015

SUPPORT

Hydraulic Pump

1шт.

17

NSS

NOT SOLD SEPARAT

Channel Edge Trim

1шт.

18

NSS

NOT SOLD SEPARAT

Channel Edge Trim

1шт.

19

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

20

84276122

BRACKET

Front Fan Shield

1шт.

21

1982345C3

STRAP

Lower Right Hand Support

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

23

231-5146

FLANGE NUT,3/8"-16

1шт.

24

495-11034

WASHER,5/16", SAE

13шт.

25

492-11031

LOCK WASHER,5/16"

13шт.

26

425-105

NUT,5/16"-18, G5

13шт.

27

84173526

SHIELD

Trash Front Right Hand Upper

1шт.

28

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

11шт.

29

113-197

BOLT,Hex, 5/16" - 18 x 4", Gr 2, Full Thd

2шт.

30

84276436

PLATE

Fan Shield Assembly

1шт.

31

87736935

PANEL ASSY.

Barrier Right Hand

1шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

7шт.

33

414874A1

BRACKET

Fan Shield Upper Rear Assembly

1шт.

34

177559A1

SUPPORT

Fan Shield Front Left Hand

1шт.

35

84180566

PLATE ASSY.

Fan Shield Right Hand

1шт.

36

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1шт.

37

87319430

BRACKET

Front Screen Support Right Hand

4шт.

38

298059A1

SUPPORT

Right Hand Front

1шт.

39

1982349C3

GASKET

Channel Edge Trim

3шт.

40

409-758

BOLT,Hex Flg, 5/16" - 18 x 1/2", Spcl

3шт.
