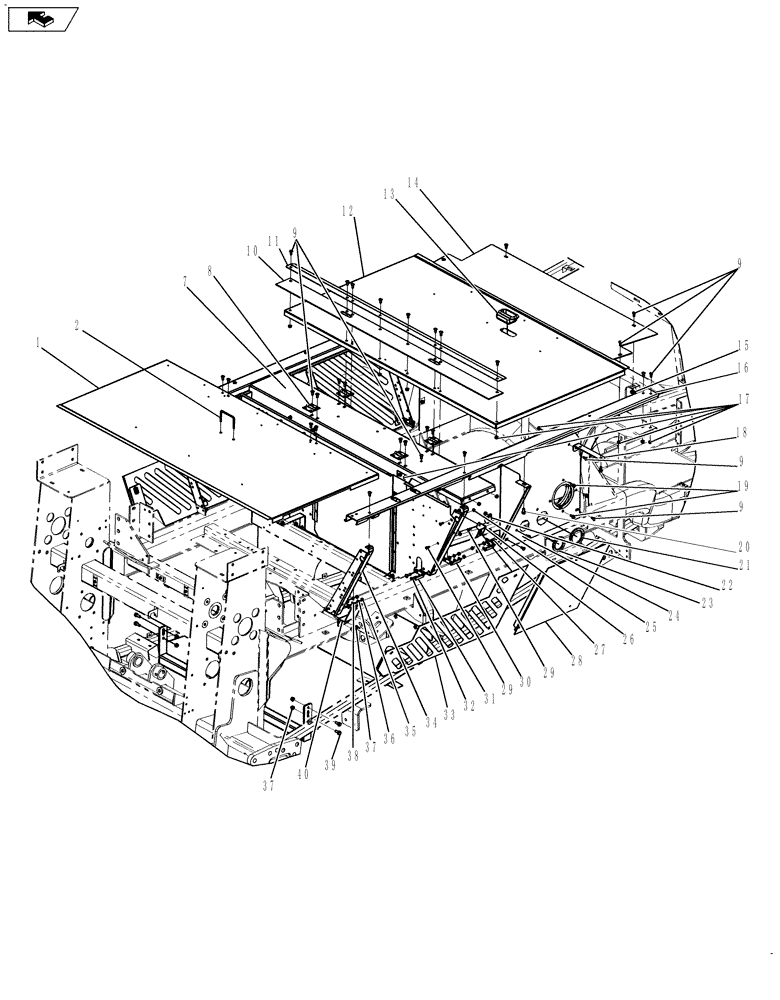

Запчасти Case IH 635 (90.102.01[02]) - FRONT DECK, SHIELDS AND ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

372153A1

DOOR ASSY.

Front Deck

1шт.

2

87408511

HANDLE

Retractable Inc. 3-6

1шт.

3

87408512

HANDLE

(Not Shown)

1шт.

4

9626558

FLANGE NUT,Flg, 1/4"-20

(Not Shown)

2шт.

5

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

(Not Shown)

4шт.

6

87408513

SPRING

(Not Shown)

2шт.

7

323826A1

CHANNEL

Hinge Support

1шт.

8

215720C1

HINGE

Assembled

4шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

10

84153760

RUBBER SEAL

Sheet

1шт.

11

84181906

COVER

Plate

1шт.

12

87737618

PANEL ASSY.

Radiator Access

1шт.

13

3962571

HANDLE

1шт.

14

84238642

CHANNEL

Hinge Support

1шт.

15

131-137

SPRING NUT,Ret, 5/16"-18

2шт.

16

84178044

SUPPORT ASSY.

Left Hand Front

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

18

84179135

BRACKET

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

10шт.

20

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

21

NSS

NOT SOLD SEPARAT

Channel Edge Trim

1шт.

22

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

23

REF

INSTRUCTION

Access, Channel Chart Edge Trim

1шт.

24

84383361

COVER

Left Hand Engine Compartment

1шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

26

414874A1

BRACKET

Assembly Fan Shield Upper Rear

3шт.

27

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

1шт.

28

84178016

COVER

Access

1шт.

29

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

7шт.

30

177559A1

SUPPORT

Bracket Fan Shield Front Left Hand Rear

4шт.

31

177560A1

SUPPORT

Bracket Fan Shield Front Left Hand

3шт.

32

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

33

84179769

PLATE ASSY.

Fan Shield Left Hand

1шт.

34

1345113C2

SUPPORT

Bracket Front Screen

2шт.

35

425-105

NUT,5/16"-18, G5

1шт.

36

492-11031

LOCK WASHER,5/16"

1шт.

37

231-5146

FLANGE NUT,3/8"-16

12шт.

38

495-11034

WASHER,5/16", SAE

1шт.

39

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

40

84276122

BRACKET

Front Fan Shield

1шт.
