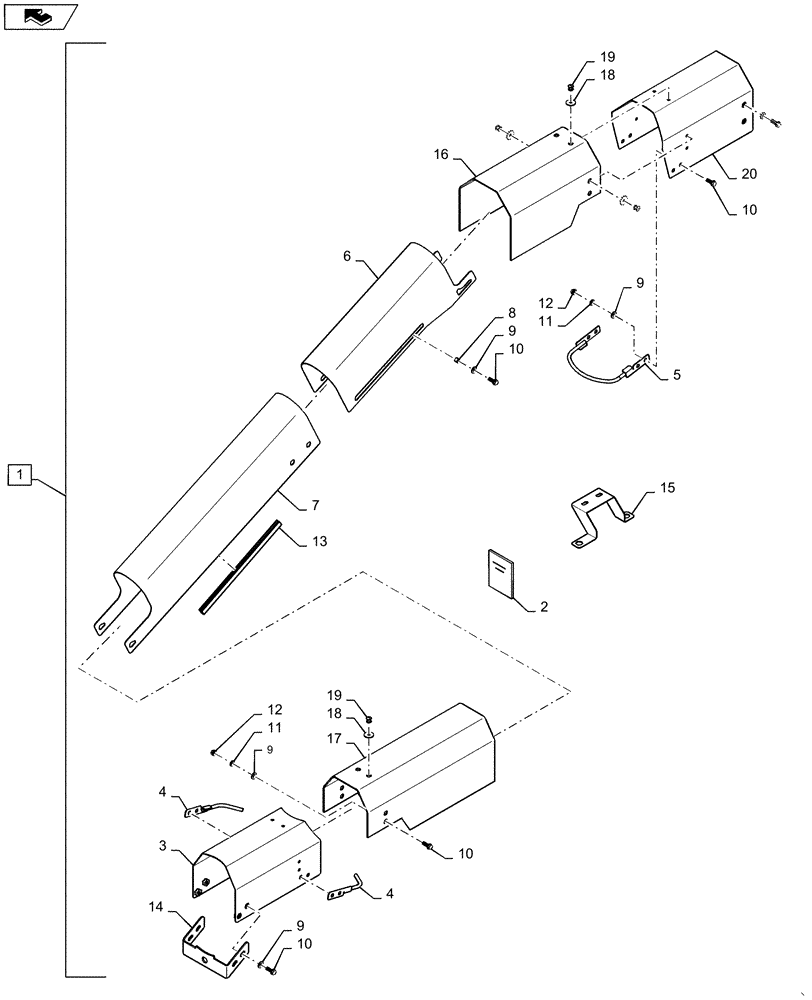

Запчасти Case IH 635 (88.060.10) - DIA KIT, DRUM DRIVE SHAFT COVER (88) - ACCESSORIES

1

47461228

SERVICE KIT

Drum Drive Shaft Cover, Incl 2 - 20

1шт.

2

47452724

INSTRUCTION

1шт.

3

47436581

COVER

Front Gear Box

1шт.

4

47436564

ROD

Cover Support

2шт.

5

47411527

ROD

Clutch End

1шт.

6

47399703

COVER

Upper Shaft

1шт.

7

47399707

COVER

Lower Shaft

1шт.

8

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

4шт.

9

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

18шт.

10

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

18шт.

11

80682

LOCK WASHER,1/4"

8шт.

12

86624020

FLANGE NUT,Flg, 1/4"-20.G5

8шт.

13

NSS

NOT SOLD SEPARAT

Trim, Incl in 1

2шт.

14

47436562

MOUNT

Front Gearbox

1шт.

15

47400297

MOUNT

1шт.

16

47411497

COVER

Clutch End

1шт.

17

47436446

COVER

Rubber, Drum End

1шт.

18

86625235

WASHER,0.2" ID x 0.75" OD x 0.06" Thk

12шт.

19

151-512

RIVET,Pop, 4.75mm OD x 9.53mm L

12шт.

20

47399701

COVER

Clutch End

1шт.
