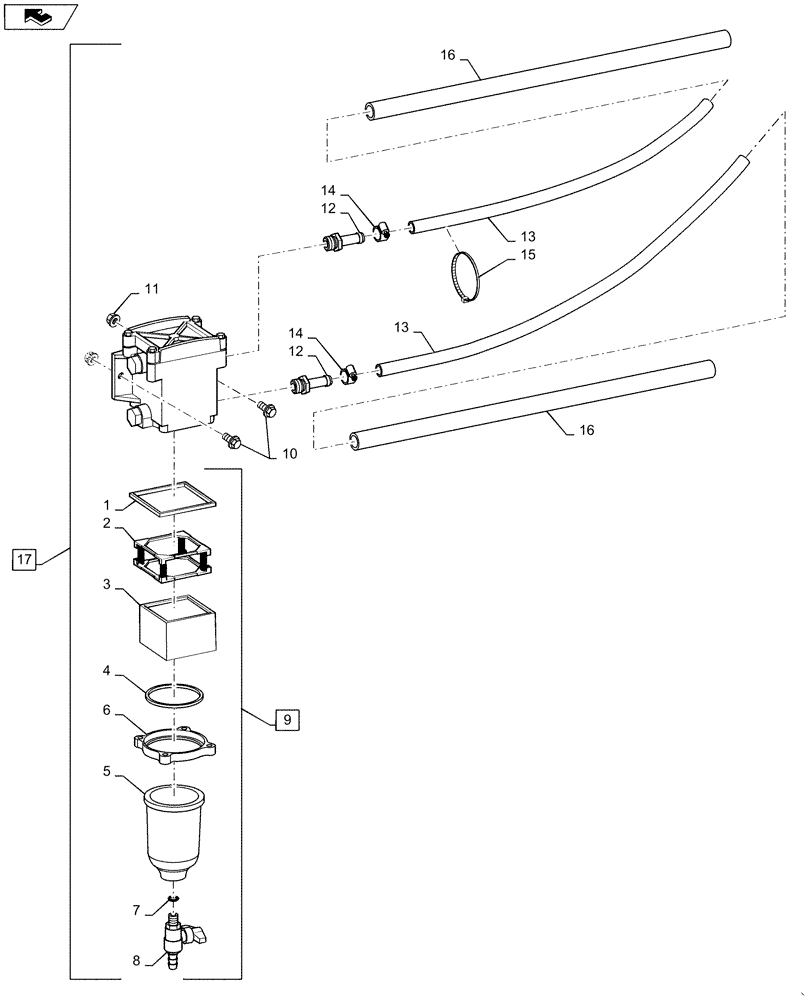

Запчасти Case IH 635 (88.010.02) - DIA KIT, FUEL SEPARATOR FILTER (88) - ACCESSORIES

1

336432A1

GASKET

Top Lid Fuel Strainer

1шт.

2

336431A1

FRAME

Filter Spring

1шт.

3

336430A1

FUEL FILTER

30 Micron Fuel Strainer

1шт.

4

336433A1

SEAL,70mm ID x 78mm OD x 3mm Thk

Bowl Fuel Strainer

1шт.

5

369842A1

FILTER BOWL

Housing

1шт.

6

369841A1

RETAINER

Separator Filter

1шт.

7

369843A1

O-RING,2.5mm Thk x 10.5mm ID

Separator O-Ring

1шт.

8

369844A1

DRAINCOCK/TAP SUPPLY

1шт.

9

336429A2

FUEL FILTER

Incl 1 - 8

1шт.

10

86512168

BOLT,Hex Serr Flg, 5/16" - 18 x 1"

2шт.

11

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

12

217-182

FITTING,1/2" Hose Barb x 3/4" - 16 Male ORB

2шт.

13

87474199

FUEL HOSE,12.70 mm ID x 750.00 mm

2шт.

14

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

15

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.

16

87548256

CONDUIT

Return Fuel Line

2шт.

17

87473823

SERVICE KIT

Incl 1 - 16

1шт.
