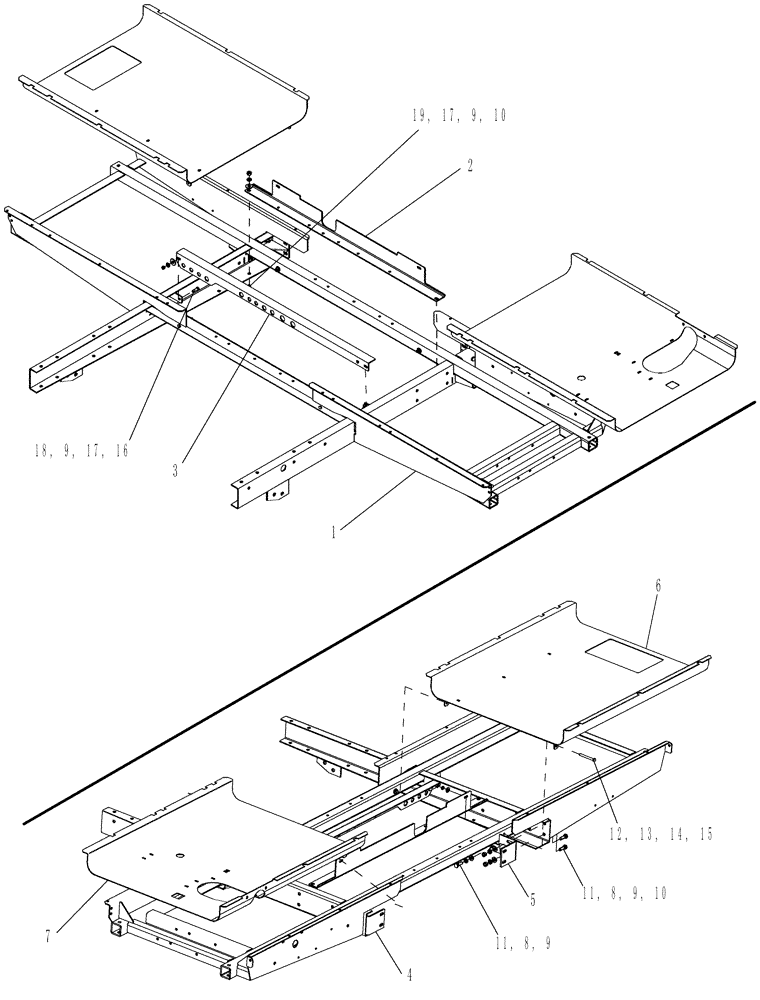

Запчасти Case IH 635 (80.200.27) - WATER TANK SUPPORT WITH SADDLE (80) - CROP STORAGE/UNLOADING

1

87683565

SUPPORT ASSY.

Water Tank Structure

1шт.

2

87683612

SUPPORT ASSY.

Saddle Center Channel

1шт.

3

87683613

SUPPORT ASSY.

Angle Water Tank

1шт.

4

87683614

SUPPORT ASSY.

Mast to Water Tank Bracket, Left

1шт.

5

87683617

SUPPORT ASSY.

Mast to Water Tank Bracket, Right

1шт.

6

87683619

SUPPORT ASSY.

Water Tank Saddle, Left

1шт.

7

87683621

SUPPORT ASSY.

Water Tank Saddle, Right

1шт.

8

495-11053

WASHER,1/2", SAE

6шт.

9

492-11050

LOCK WASHER,1/2"

10шт.

10

425-108

NUT,1/2" - 13, Gr 5

6шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

12

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

4шт.

13

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

15

9628503

NUT,3/8"-16, G5

4шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

17

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.
