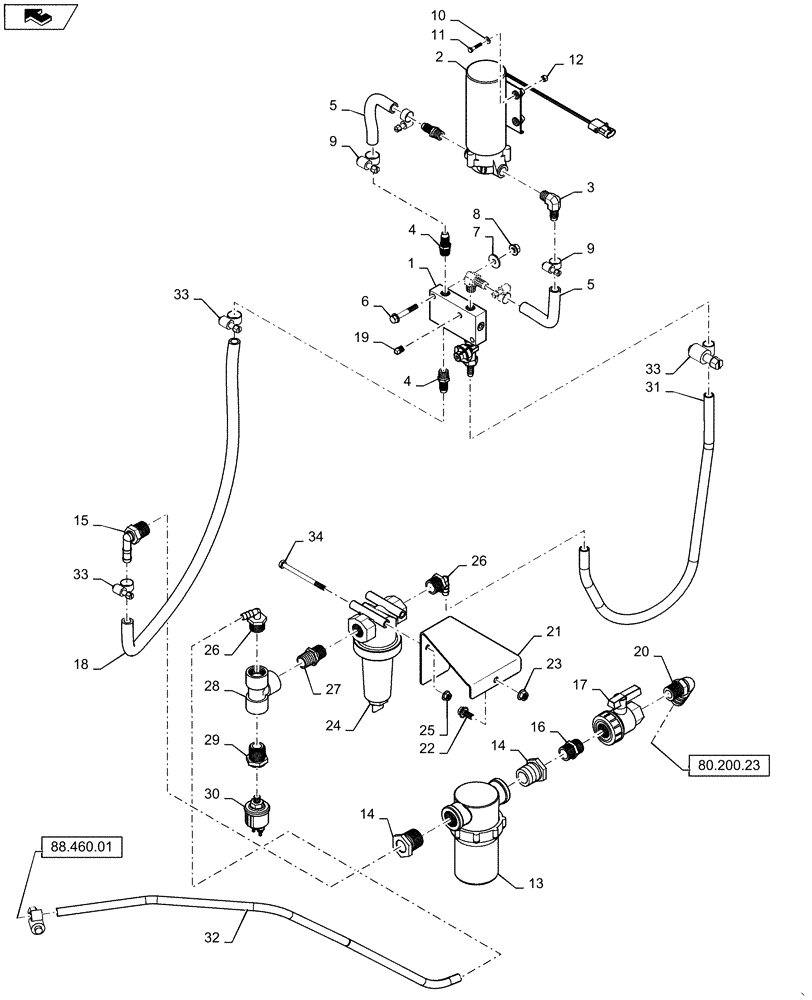

Запчасти Case IH 635 (80.200.25[02]) - MOISTENER SYSTEM, MDL YEAR 2012 (80) - CROP STORAGE/UNLOADING

1

414948A1

VALVE

1шт.

2

374204A1

PUMP, WATER

1шт.

3

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

4

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

5

1982241C1

HOSE

2шт.

6

458-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

7

496-41034

WASHER,.344" x 1" x .098", HDN

2шт.

8

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

9

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

6шт.

10

495-31022

WASHER,#10

4шт.

11

463-11016

SCREW,Hex Hd, #10-24 x 1"

4шт.

12

231-14109

LOCK NUT,#10-24, GB

4шт.

13

87006C92

FILTER

1шт.

14

BN53665

BUSHING

2шт.

15

BN73578

FITTING

1шт.

16

1345155C1

ADAPTER

1шт.

17

BN324588

VALVE

1шт.

18

1345206C1

HOSE,0.50" ID x 42.00"

1шт.

19

217-497

DRAIN PLUG,Sq Hd, 1/8" - 27 NPTF, Brass

1шт.

20

134271C2

ELBOW,ELBOW, 90

1шт.

21

84511649

BRACKET

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

23

231-5146

FLANGE NUT,3/8"-16

1шт.

24

84496378

FILTER STRAINER

1шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

26

1339135C1

ELBOW

2шт.

27

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

1шт.

28

BN73560

TEE

1шт.

29

87385590

BUSHING,3/4" MPT x 1/8" FPT Reducing Bushing

1шт.

30

141062A1

SENSOR

1шт.

31

87417263

HOSE

cut to size, 750mm

1шт.

32

87417263

HOSE

cut to size, 1100mm

1шт.

33

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

34

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.
