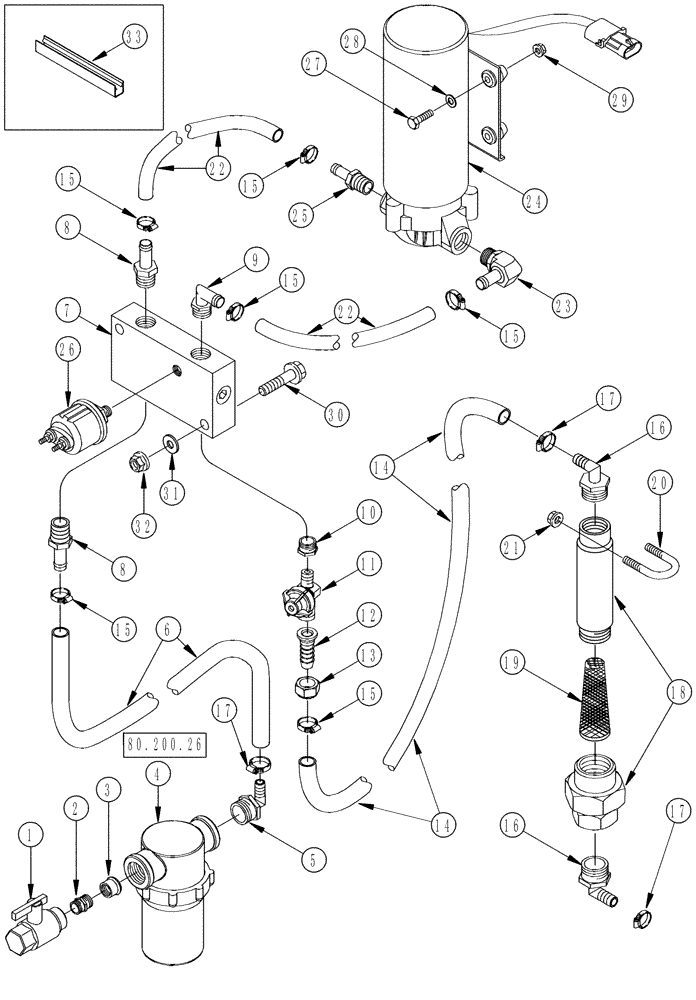

Запчасти Case IH 635 (80.200.25[01]) - MOISTENER SYSTEM (80) - CROP STORAGE/UNLOADING

1

BN324588

VALVE

1шт.

2

1345155C1

ADAPTER

3/4 PT x 3/4

1шт.

3

1345154C1

FITTING

1 x 3/4

1шт.

4

87006C92

FILTER

1шт.

5

1345153C1

90 ELBOW

1 x 1/2

1шт.

6

1345206C1

HOSE,0.50" ID x 42.00"

1067 mm (42"), Cut From 665181R1

1шт.

7

418576A1

MANIFOLD

Moistener

1шт.

8

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

2шт.

9

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

10

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

1шт.

11

414948A1

VALVE

10 psi

1шт.

12

1339130C1

FITTING

1шт.

13

1339129C1

NUT

1шт.

14

87414874

HOSE,9.53 mm ID x 467.00 mm

Cut From 1338159C1

1шт.

15

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

6шт.

16

1339135C1

ELBOW

3/4 PT x 3/8

2шт.

17

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

18

1339134C1

FILTER

Inc. 19

1шт.

19

1339256C1

FILTER STRAINER

1шт.

20

1338145C1

U-BOLT,3/8" - 16 x 41.15mm W x 41.30mm L

3/8

1шт.

21

231-4116

NUT,3/8"-16, GB

2шт.

22

1982241C1

HOSE

191 mm (7-1/2"), Cut From 664181R1

2шт.

23

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

24

374204A1

PUMP, WATER

No Serviceable Components

1шт.

25

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

26

141062A1

SENSOR

80 psi, Moisture Pressure

1шт.

27

463-11016

SCREW,Hex Hd, #10-24 x 1"

4шт.

28

495-31022

WASHER,#10

4шт.

29

86625057

NUT,#10-24, GB

4шт.

30

458-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

31

496-41034

WASHER,.344" x 1" x .098", HDN

2шт.

32

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

33

413776A1

PROTECTION STRIP

171 mm (6-3/4), Cut From 1330108CX

1шт.
