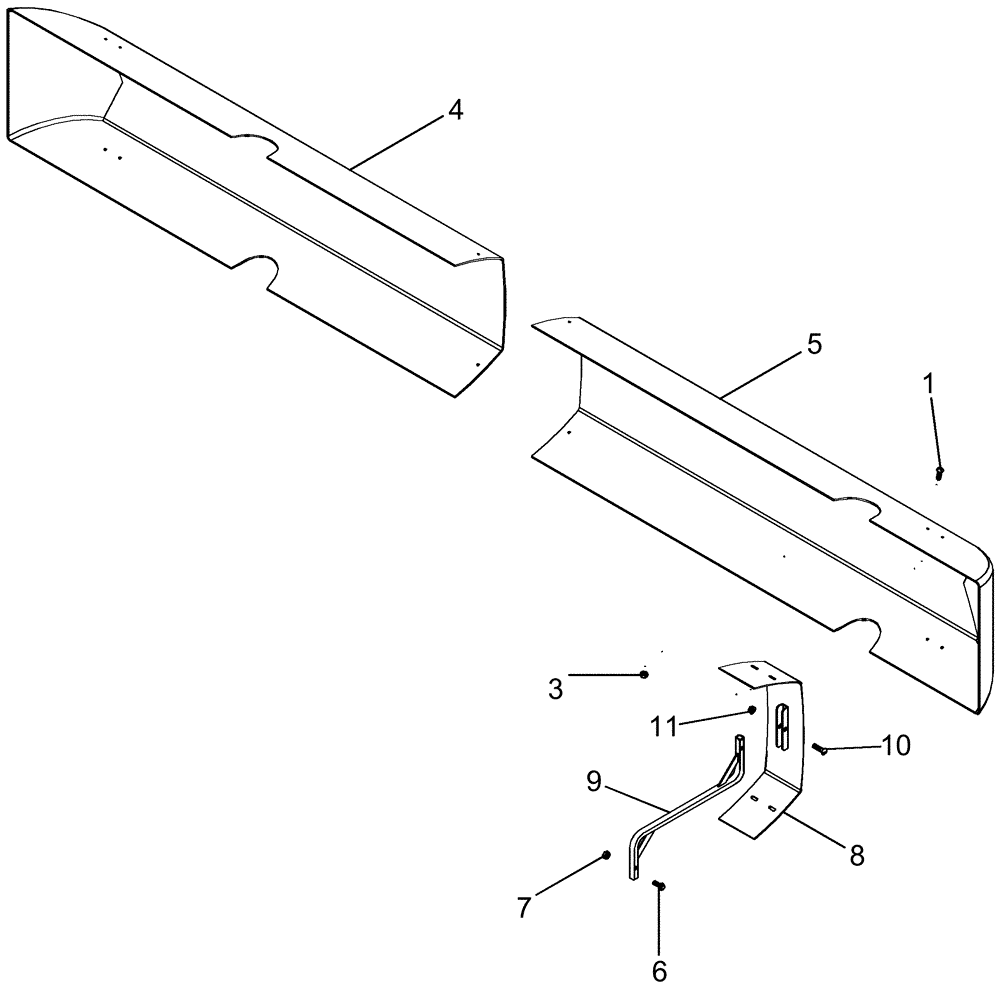

Запчасти Case IH 635 (80.200.22) - MODULE, DECAL PANEL (80) - CROP STORAGE/UNLOADING

1

86511939

SCREW,Pan, 5/16" - 18 x 1"

24шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

4

87579928

PANEL ASSY.

Front, Left and Right Side

2шт.

5

87579929

PANEL ASSY.

Rear, Left and Right Side

2шт.

6

477-73824

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/2"

6шт.

7

231-5146

FLANGE NUT,3/8"-16

6шт.

8

87661367

PLATE ASSY.

Decal Bracket

6шт.

9

87592417

PLATE ASSY.

Decal Panel

6шт.

10

477-73824

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/2"

6шт.

11

231-5146

FLANGE NUT,3/8"-16

6шт.
