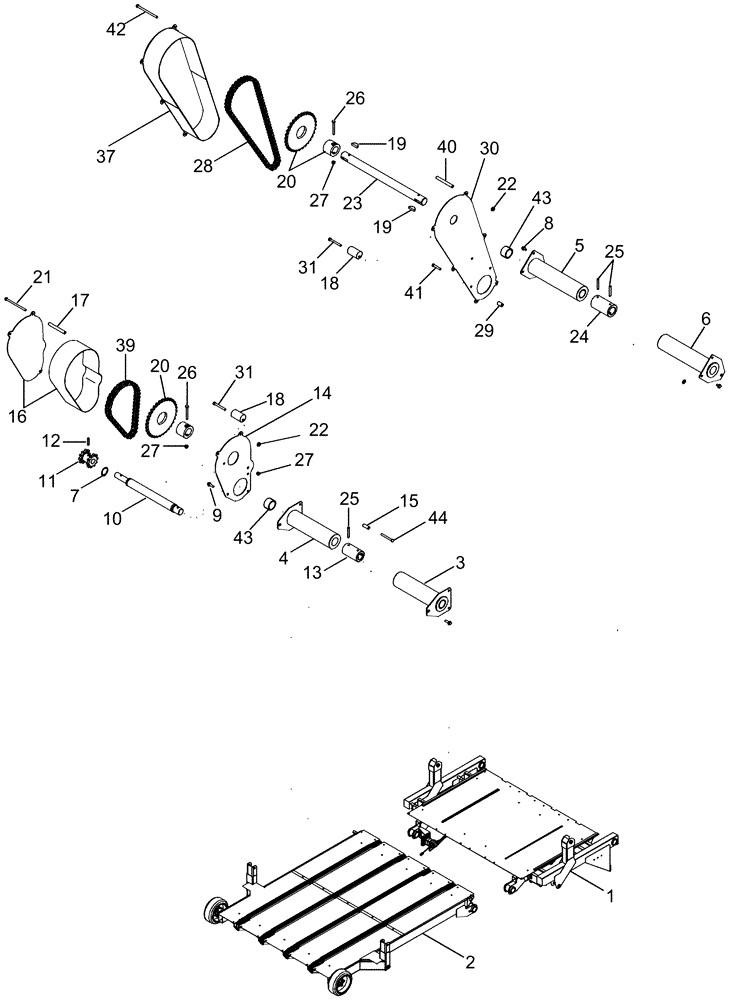

Запчасти Case IH 635 (80.200.19) - MODULE DOOR, MOTOR DRIVE (80) - CROP STORAGE/UNLOADING
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
DOOR, Primary, Complete
1шт.
2
NSS
NOT SOLD SEPARAT
DOOR, Secondary, Complete
1шт.
3
87424807
PIVOT ASSY.
Door, Right Hand
1шт.
4
87452620
PIN ASSY.
Secondary to Primary, Left Hand, Inc. 43
1шт.
5
87452619
PIN ASSY.
Primary to Floor, Left Hand, Inc. 43
1шт.
6
87450280
PIN
Door Pivot, Right Hand
1шт.
7
103-11150
SNAP RING,#150, Ext
2шт.
8
409-768
BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl
2шт.
9
121-231
SERRATED BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
10
87445462
DRIVE SHAFT
Double Chain Drive
1шт.
11
87445452
DRIVING SPROCKET
Drive Motor
1шт.
12
87947
LOCK PIN,7.94mm OD x 38.1mm L, Slotted
1шт.
13
87445666
COUPLING
Motor Drive Chain
1шт.
14
87329232
PLATE ASSY.
Chain Cover, Back
1шт.
15
87329237
SPACER
Chain Cover, Back
1шт.
16
87329233
COVER ASSY
Chain, Outer
1шт.
17
87329238
SPACER
Chain Cover, Back
3шт.
18
87329718
IDLER
Door Chain
2шт.
19
126-140
WOODRUFF KEY,#G, 3/8" x 1 1/2", HT
4шт.
20
87448672
SPROCKET ASSY.
Basket Unloader Drive
2шт.
21
413-580
BOLT,Hex, 5/16" - 18 x 5", Gr 5
3шт.
22
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
7шт.
23
87456062
SHAFT
Unloader, Floor, Short
1шт.
24
87456061
COUPLING
Unloader Shaft, Floor
1шт.
25
38-12036
LOCK PIN,5/16" x 2 1/4", Slotted
3шт.
26
326-544
BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8
2шт.
27
231-1445
NUT,5/16"-18, GB
4шт.
28
87445791
CHAIN (AG)
Outside Main
1шт.
29
493933R1
SPACER,5/8" Tube x 1 7/16"
3шт.
30
87606385
GUARD
Chain
1шт.
31
413-548
BOLT,Hex, 5/16" - 18 x 3", Gr 5
2шт.
37
87606381
GUARD
Floor Chain
1шт.
39
87445607
CHAIN,Assembly, Outside
Outside
1шт.
40
27634R1
SPACER,1/4" Pipe x 3"
6шт.
41
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
3шт.
42
413-560
BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5
6шт.
43
87324085
BEARING LINER,38.278mm ID x 44.539mm OD x 31.80mm
Conveyor Shaft
4шт.
44
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
Chain Cover Spacer
1шт.
Выбрано товаров: 38
