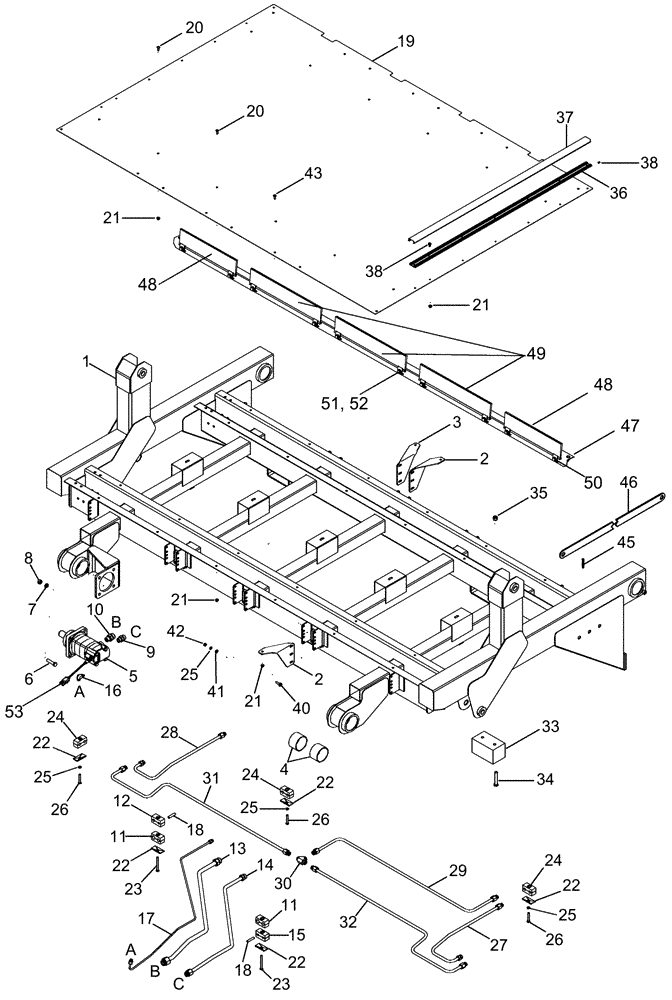

Запчасти Case IH 635 (80.200.17) - MODULE DOOR, PRIMARY (80) - CROP STORAGE/UNLOADING

1

87592833

DOOR

1шт.

2

87393057

SUPPORT ASSY.

Sheet Left Hand

8шт.

3

87393058

SUPPORT ASSY.

Sheet Right Hand

8шт.

4

87324087

BEARING LINER,76.4667mm ID x 82.677mm OD x 50.80mm

Door Pivot

4шт.

5

87447047

MOTOR, HYDRAULIC,393.8CC

Unloader

1шт.

6

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

7

492-11050

LOCK WASHER,1/2"

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

4шт.

9

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

10

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

1шт.

11

87000144

CLAMP

2шт.

12

87105732

CLAMP

1шт.

13

87448005

TUBE,0.625" OD

Motor Inlet

1шт.

14

87448006

TUBE,0.75" OD

Motor Return

1шт.

15

87105732

CLAMP

1шт.

16

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

1шт.

17

87448255

TUBE,0.25" OD

Motor Case Drain

1шт.

18

163489C1

STRIP

2шт.

19

87603100

SHEET ASSY.

Door

1шт.

19

84557153

SHEET

Door, Start Year: 04-JAN-12

1шт.

20

87538570

SERRATED SCREW,1/4" - 20 x 3/4", Gr 8

46шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

46шт.

22

1347127C1

PLATE

Hose Clamp

6шт.

23

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

2шт.

24

1546025C1

CLAMP

4шт.

25

492-11031

LOCK WASHER,5/16"

52шт.

26

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

27

87451480

HYD TUBE,0.5" OD

Door Open Right Hand

1шт.

28

87451479

HYD TUBE,0.5" OD

Door Open Left Hand

1шт.

29

87451476

TUBE,0.5" OD

Main Door Close

1шт.

30

201-409

TEE,13/16"-16 ORFS

1шт.

31

87451477

TUBE,0.5" OD

Door Close Left Hand

1шт.

32

87451478

TUBE,0.5" OD

Door Close Right Hand

1шт.

33

87423198

DAMPER

Compactor Cylinder Damper

2шт.

34

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

35

231-1448

NUT,1/2"-13, GB

4шт.

36

87603590

RETAINER

Door Seal Retainer

2шт.

36

84555928

FLANGE

Door Seal Retainer, Start Year: 04-JAN-12

2шт.

37

87603589

DOOR SEAL

2шт.

37

84555949

SEAL

Primary Door, Start Year: 04-JAN-12

2шт.

38

80438

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

8шт.

39

47381872

SEAL RETAINER

Flange, Primary Door, Not Illustrated

2шт.

40

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

48шт.

41

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

48шт.

42

425-105

NUT,5/16"-18, G5

48шт.

43

87538570

SERRATED SCREW,1/4" - 20 x 3/4", Gr 8

16шт.

45

432-1628

COTTER PIN,1/4" x 1 3/4"

4шт.

46

87670193

LOCKING PLATE

Primary Door Shipping Lock

2шт.

47

87708031

BRACKET

Brush Mounting

1шт.

48

87732688

BRUSH, COMMUTATOR

Primary Door

2шт.

49

87732690

BRUSH, COMMUTATOR

Primary Door

3шт.

50

1979644C1

CLIP,ELECTRICAL

Brush

10шт.

51

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

10шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

53

87380892

SENSOR

Speed, Motor

1шт.
