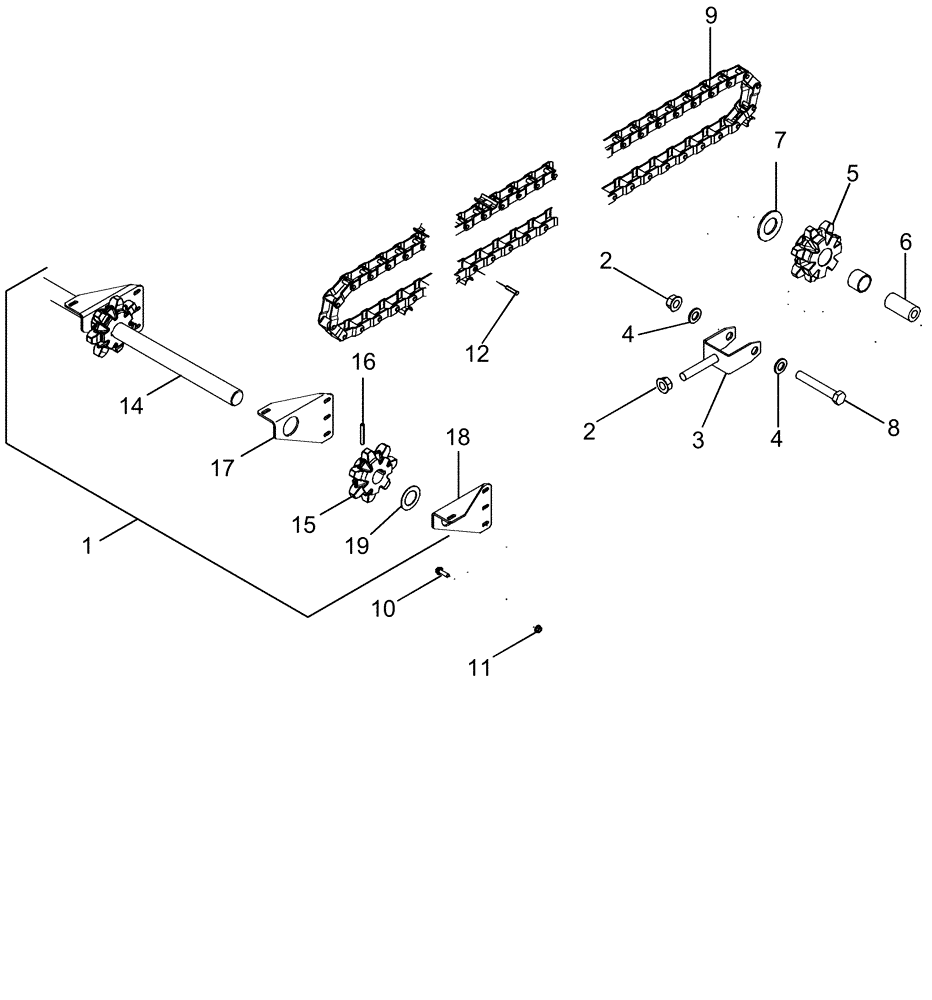

Запчасти Case IH 635 (80.200.16) - MODULE, FLOOR UNLOADER DRIVE (80) - CROP STORAGE/UNLOADING

1

87456012

SHAFT ASSY.

Floor Unloader Drive, Inc. 14 - 19

1шт.

2

131-935

FLANGE NUT,Flg, 3/4"-10, G8

8шт.

3

87422316

YOKE

Chain Adjustment

4шт.

4

495-11081

WASHER,3/4", SAE

8шт.

5

87393453

SPROCKET ASSY.

7 Tooth Idler

4шт.

6

87422320

PIPE

Idler Pulley Pivot

4шт.

7

495-11162

WASHER,1 1/2" x 3" x .165"

4шт.

8

326-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

4шт.

9

87434623

CHAIN (AG)

Basket Floor

4шт.

10

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

15шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

15шт.

12

1329837C2

PIN,2.63mm OD

4шт.

14

87608072

SHAFT

Unloader Chain Drive

1шт.

15

87393452

SPROCKET

Pintle 7T Drive

4шт.

16

38-12036

LOCK PIN,5/16" x 2 1/4", Slotted

4шт.

17

87641643

HOUSING ASSY.

Conveyor Shaft, Left Hand

1шт.

18

87641644

HOUSING ASSY.

Conveyor Shaft, Right Hand

1шт.

19

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

2шт.
