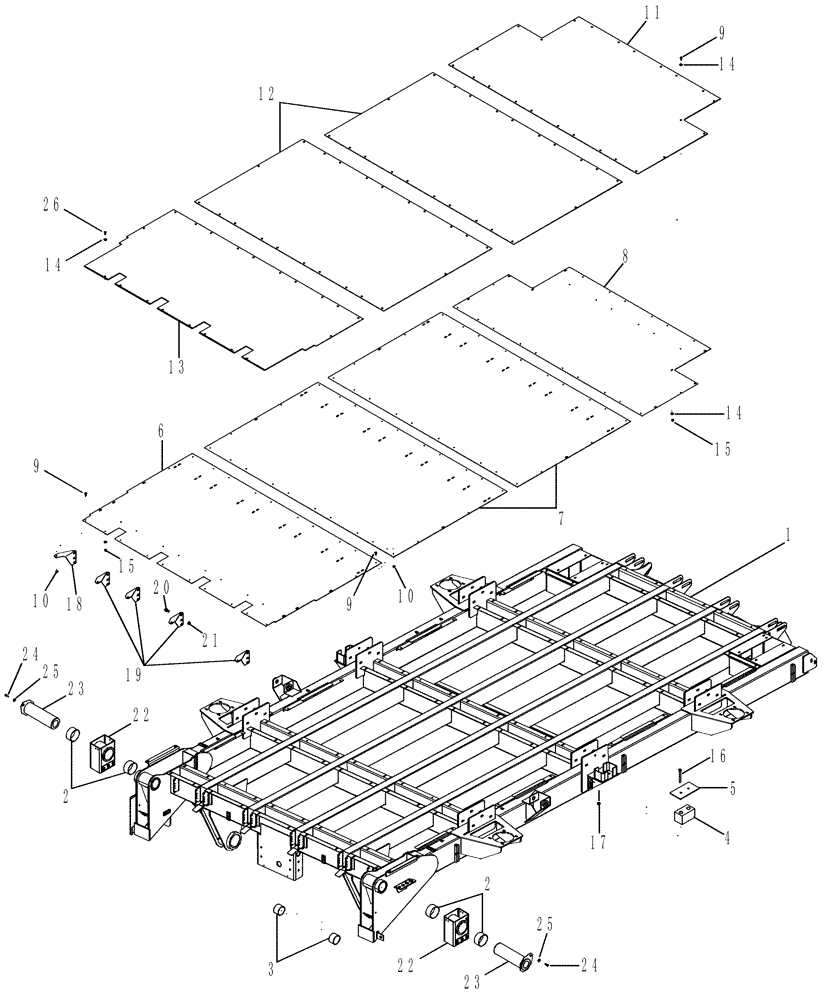

Запчасти Case IH 635 (80.200.15) - MODULE, FLOOR (80) - CROP STORAGE/UNLOADING

1

84562809

FLOOR

Module

1шт.

2

87324088

BEARING LINER,101.956mm ID x 108.1278mm OD x 50.80mm

4шт.

3

87324087

BEARING LINER,76.4667mm ID x 82.677mm OD x 50.80mm

Door Pivot

4шт.

4

87423198

DAMPER

Compactor Cylinder Damper

2шт.

5

87458803

PLATE ASSY.

Compactor Down Stop

2шт.

6

87367205

SHEET ASSY.

Floor, Rear

1шт.

7

87444383

SHEET ASSY.

Floor, Center

2шт.

8

87444384

SHEET ASSY.

Floor, Front

1шт.

9

87538570

SERRATED SCREW,1/4" - 20 x 3/4", Gr 8

84шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

56шт.

11

87447871

SHEET ASSY.

Floor, Front

1шт.

12

87447872

SHEET ASSY.

Floor, Middle

2шт.

13

87367206

SHEET ASSY.

Floor, Rear

1шт.

14

495-21031

WASHER,1/4"

63шт.

15

231-5344

FLANGE NUT,Flg, 1/4"-20

50шт.

16

426-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

4шт.

17

231-4148

NUT,1/2"-13, GB

4шт.

18

87393057

SUPPORT ASSY.

Sheet, Left Hand

1шт.

19

87393058

SUPPORT ASSY.

Sheet, Right Hand

4шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

15шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

15шт.

22

87596057

PIVOT

Main Packager

2шт.

23

87424498

PIVOT ASSY.

Packager Pivot

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

26

87327194

SERRATED SCREW,Sl Truss Head, 1/4" - 20 x 1", Gr 8

22шт.
