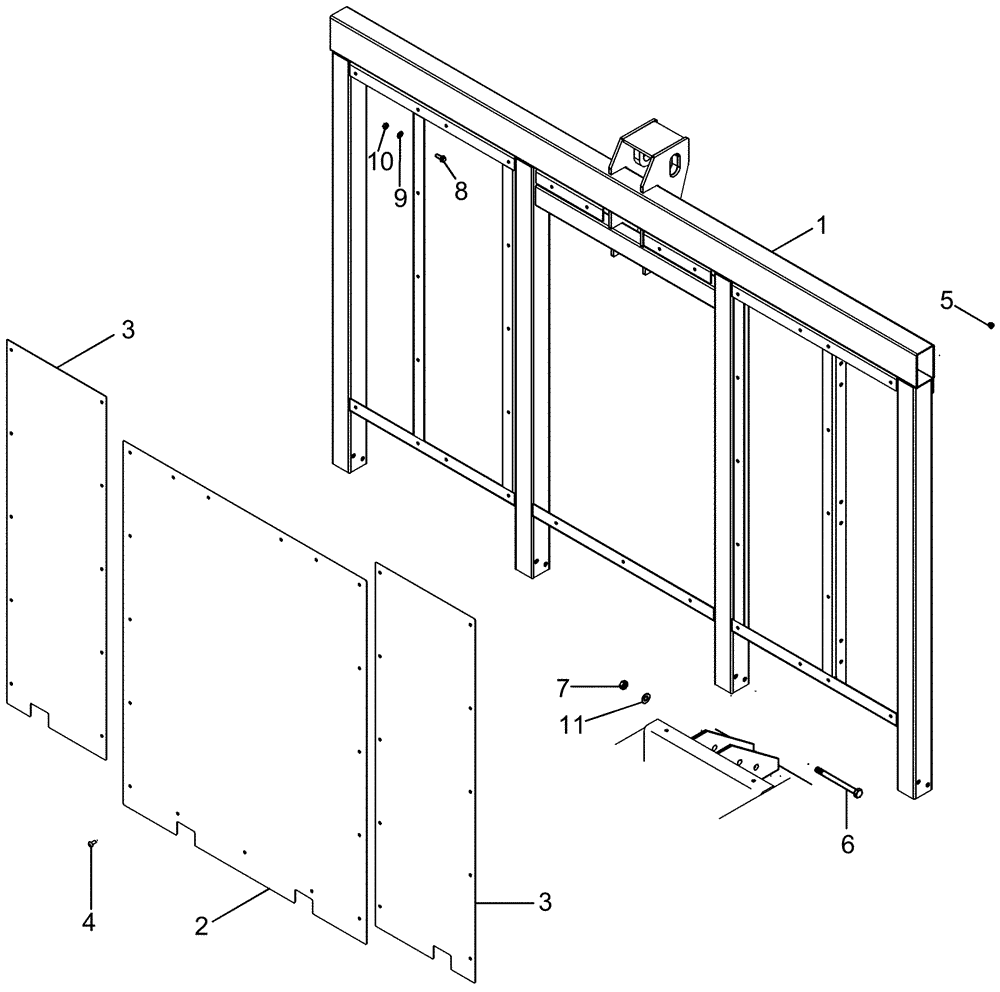

Запчасти Case IH 635 (80.200.12) - MODULE, FRONT WALL (80) - CROP STORAGE/UNLOADING

1

87591663

WALL

Front

1шт.

2

87381292

WALL

Front Inner

1шт.

3

87381291

WALL

Front Outer

2шт.

4

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

27шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

27шт.

6

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

7

425-108

NUT,1/2" - 13, Gr 5

8шт.

8

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

9

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

16шт.

10

425-106

NUT,3/8"-16, Cl 5

8шт.

11

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.
