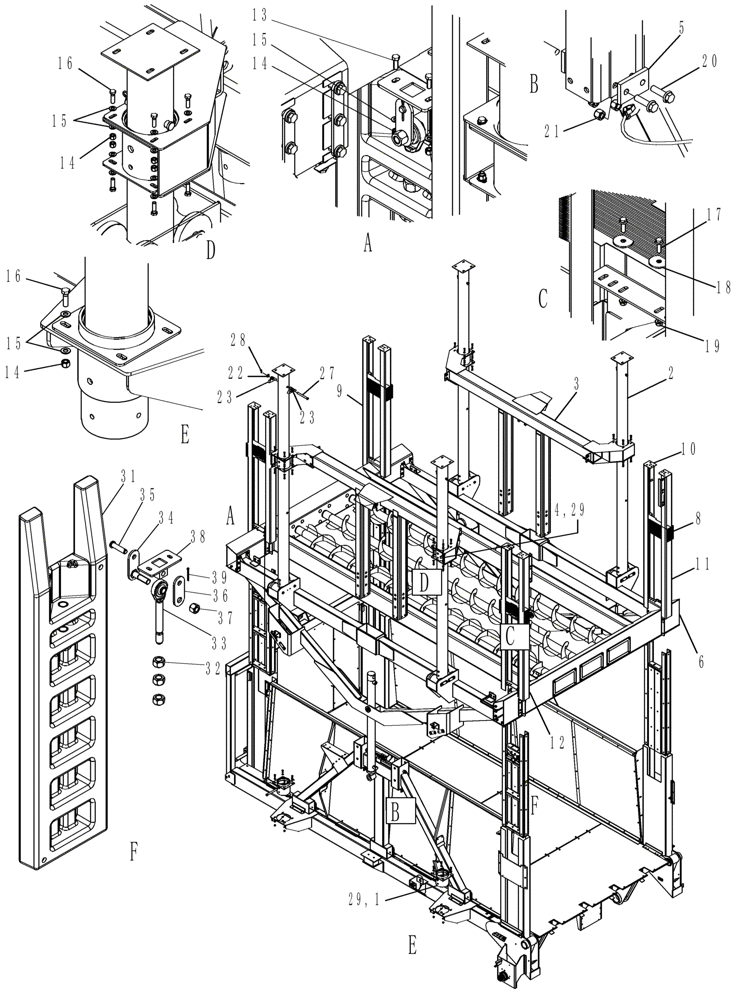

Запчасти Case IH 635 (80.200.11) - MODULE, COMPACTOR (80) - CROP STORAGE/UNLOADING

1

84137727

SUPPORT

Guide Post, Lower

4шт.

2

87608696

TUBE

Compactor Guide

4шт.

3

87411531

SUPPORT ASSY.

Compactor Cylinder, Upper

2шт.

3

84480986

SUPPORT

, Start Year: 04-JAN-12

2шт.

4

84135027

SUPPORT ASSY.

Guide Post, Upper

4шт.

5

87449994

PLATE ASSY.

Frame Bottom Support

8шт.

6

NSS

NOT SOLD SEPARAT

COMPACTOR, Complete

1шт.

8

87364815

BELLOWS

Compactor Bellow, Upper

4шт.

9

87387187

GUIDE

Upper Bellows Front

4шт.

10

87451385

CHANNEL

Upper Rear Guide

2шт.

11

84327868

GUIDE

Right Hand Rear Upper Bellows

1шт.

11

84562196

GUIDE

Right Rear Upper Bellows, Start Year: 04-JAN-12

1шт.

12

84327853

GUIDE

Left Hand Rear Upper Bellows

1шт.

12

84562194

GUIDE

Left Hand Rear Upper Bellows, Start Year: 04-JAN-12

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

14

231-4136

LOCK NUT,3/8"-16, GB

56шт.

15

495-81124

WASHER,0.38" ID x 0.75" OD x 0.06" Thk

104шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

48шт.

17

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

8шт.

18

495-81145

WASHER,13/32" x 1 3/4" x .120"

8шт.

19

231-5345

FLANGE NUT,Flg, 5/16"-18

8шт.

20

409-7828

BOLT,Hex Flg, 1/2" - 13 x 1 3/4", Spcl

16шт.

21

231-4138

LOCK NUT,1/2"-13, GB

20шт.

22

87657977

WASHER,0.78" ID x 1.12" OD x 0.06" Thk

4шт.

23

87702325

GROMMET

8шт.

27

87334747

CLEVIS PIN

Lid Lock

8шт.

28

733-4032

COTTER PIN,M4 x 32

4шт.

29

84137731

BEARING

Guidepost Support

8шт.

30

216698

COTTER PIN,0.125" OD x 1.75" L

4шт.

31

87676172

MOLDING

Bellows, Lower

1шт.

32

825-1424

NUT,M24, Cl 8

3шт.

33

86558206

BALL JOINT

1шт.

34

87726773

PIN ASSY.

Bellows Link

1шт.

35

439-11040

HEADED PIN,5/8" x 2", G2

1шт.

36

87726775

PLATE

Link, Outer

1шт.

37

231-42412

NUT,3/4"-10, GB

1шт.

38

87726776

BRACKET

Upper, Bellows

1шт.

39

733-4040

COTTER PIN,M4 x 40

1шт.
