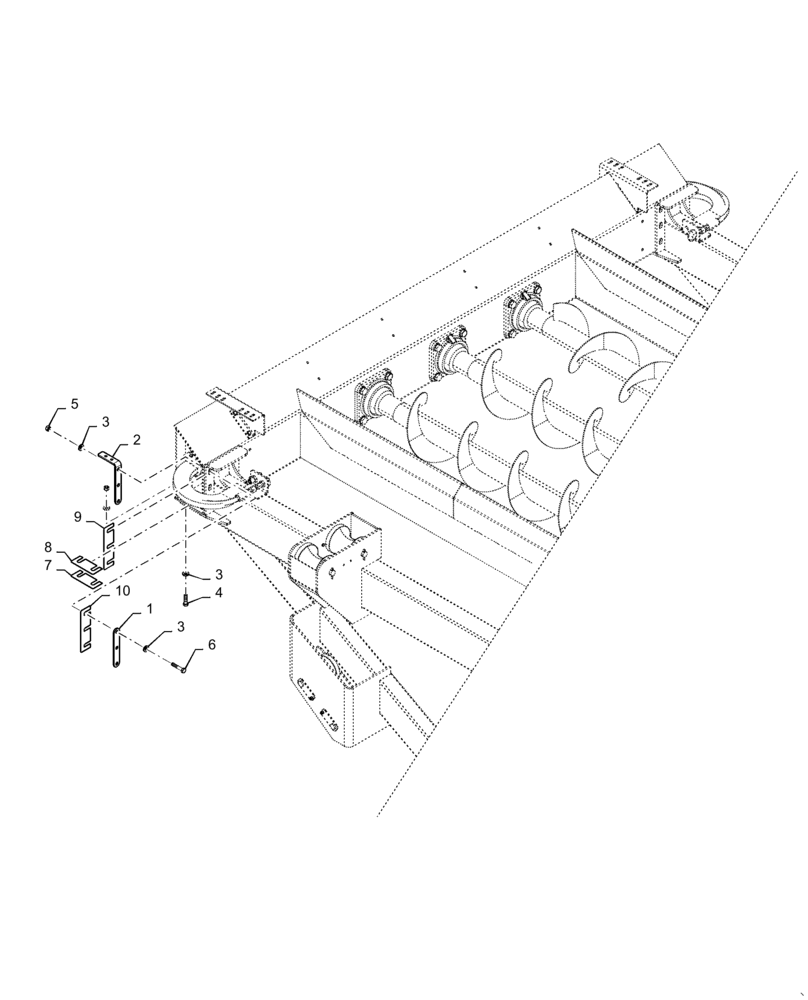

Запчасти Case IH 635 (80.200.10[03]) - MODULE, AUGER ASSY, FRAME (80) - CROP STORAGE/UNLOADING

1

87752116

ADJUSTING PLATE

Compactor

14шт.

2

87752117

ADJUSTING PLATE

Compactor

2шт.

3

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

80шт.

4

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

22шт.

5

9803187

NUT,1/2"-13, G8

41шт.

6

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

24шт.

7

87475070

PLATE ASSY.

Shim, Horizontal

4шт.

8

84174516

PLATE ASSY.

Shim, Horizontal

4шт.

9

87475068

SHIM

Shim, Vertical

8шт.

10

87475069

SHIM

Shim, Vertical

8шт.
