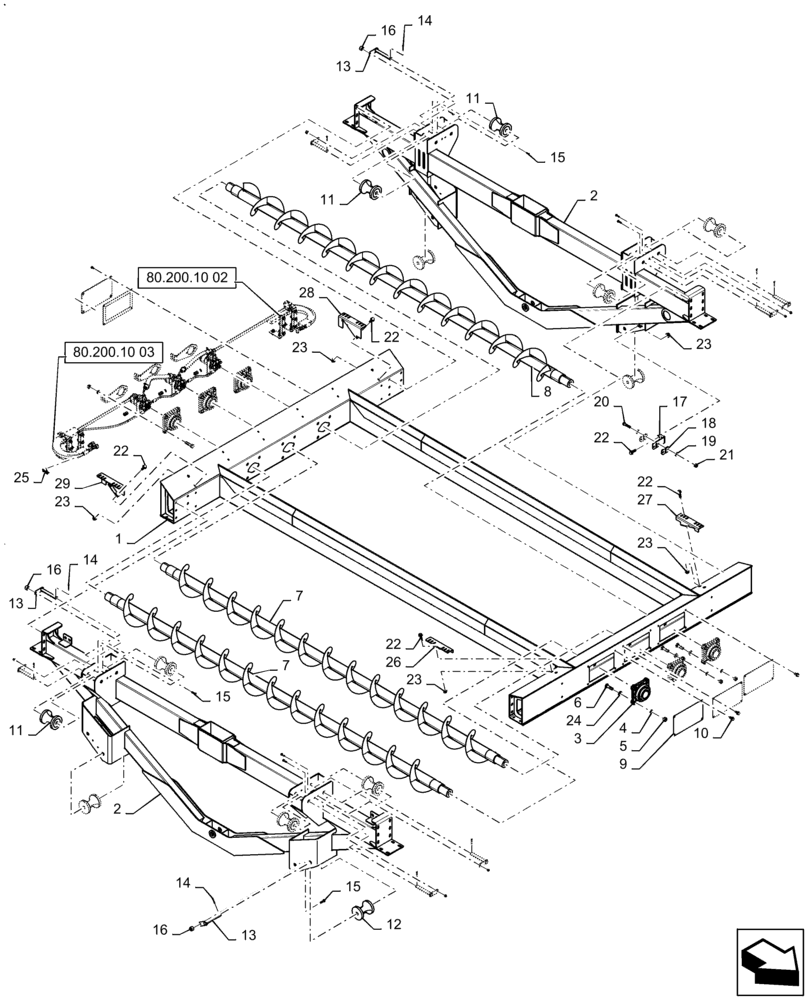

Запчасти Case IH 635 (80.200.10[01]) - MODULE, AUGER ASSY, FRAME (80) - CROP STORAGE/UNLOADING

1

84484265

FRAME

Auger Compactor

1шт.

2

87752109

SUPPORT

Compactor

2шт.

3

87444626

BEARING ASSY,74.6125 mm ID x 75.4 mm

6шт.

4

492-11075

24шт.

5

425-1012

NUT,3/4"-10, G5

30шт.

6

433-1248

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 3", Gr 5

12шт.

7

87444606

AUGER

Compactor, RH

2шт.

8

87444602

AUGER

Compactor, LH

1шт.

9

87428675

PLATE

Compactor Access, Cover

3шт.

10

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

24шт.

11

87360556

ROLLER

Compactor, Upper

8шт.

12

87423530

ROLLER

Compactor, Lower

8шт.

13

87607525

PIN ASSY.

Compactor, Roller

16шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

16шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

16шт.

16

231-1444

NUT,1/4"-20, GB

16шт.

17

87617156

2шт.

18

87617157

BLOCK

4шт.

19

495-11034

WASHER,5/16", SAE

8шт.

20

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

21

86629544

NUT,5/16” – 18, GR B

4шт.

22

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

24

495-11106

WASHER,1", SAE

12шт.

25

1345263C1

CLIP

Open, J

1шт.

26

87744206

SUPPORT

Upper Bellows, RH, Front

1шт.

27

87744205

SUPPORT

Upper Bellows, LH, Front

1шт.

28

87744207

SUPPORT

Upper Bellows, LH, Rear

1шт.

29

87744208

SUPPORT

Upper Bellows, RH, Rear

1шт.
