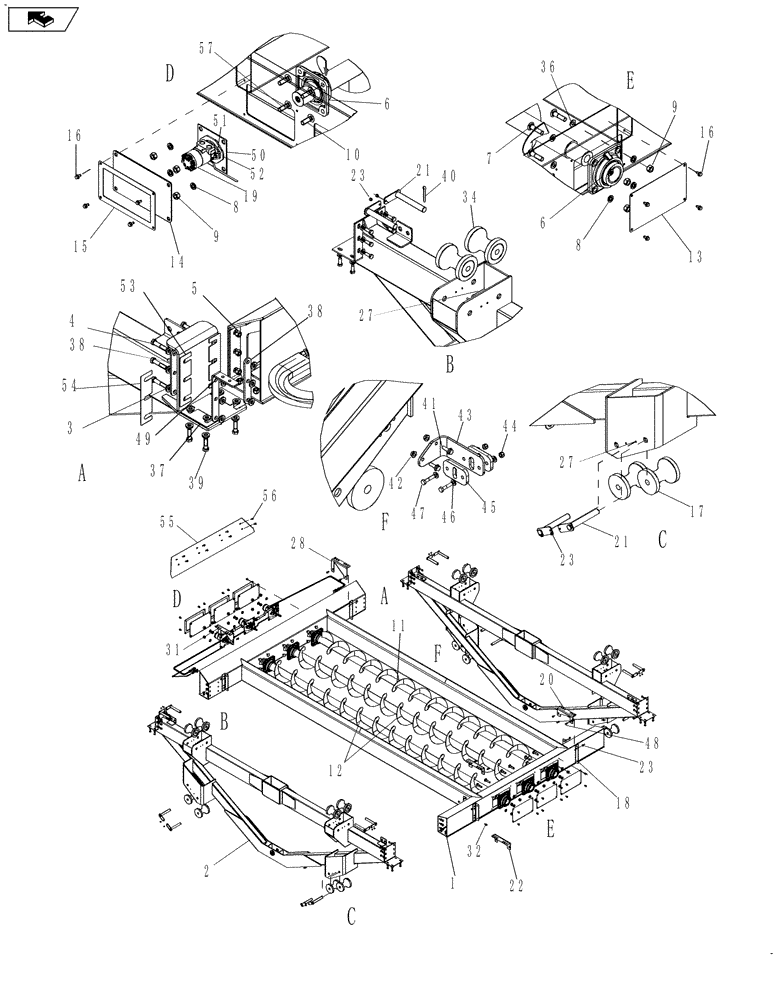

Запчасти Case IH 635 (80.200.10[01]) - MODULE, AUGER (80) - CROP STORAGE/UNLOADING

1

87752110

FRAME

Compactor

1шт.

2

87752109

SUPPORT

Compactor

2шт.

3

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

80шт.

4

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

24шт.

5

9803187

NUT,1/2"-13, G8

40шт.

6

87444626

BEARING ASSY,74.6125 mm ID x 75.4 mm

Compactor

6шт.

7

433-1248

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 3", Gr 5

12шт.

8

492-11075

LOCK WASHER,3/4"

24шт.

9

425-1012

NUT,3/4"-10, G5

24шт.

10

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

12шт.

11

87444602

AUGER

Compactor, Left Hand

1шт.

12

87444606

AUGER

Compactor, Right Hand

2шт.

13

87428675

PLATE

Compactor Access Cover

3шт.

14

87454001

DOOR COVER

Compactor Access Cover

3шт.

15

87454002

PLATE

Compactor Access Frame

3шт.

16

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

24шт.

17

87423530

ROLLER

Compactor, Lower

8шт.

19

87380505

MOTOR, HYDRAULIC,195CC

Auger

3шт.

20

87744205

SUPPORT

Upper Bellows Left Hand Front

1шт.

21

87607525

PIN ASSY.

Compactor Roller

16шт.

22

87744206

SUPPORT

Upper Bellows Right Hand Front

1шт.

23

231-1444

NUT,1/4"-20, GB

16шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

16шт.

28

87744207

SUPPORT

Upper Bellows Left Hand Rear

1шт.

31

87744208

SUPPORT

Upper Bellows Right Hand Rear

1шт.

34

87360556

ROLLER

Compactor, Upper

8шт.

36

495-11106

WASHER,1", SAE

12шт.

37

84174516

PLATE ASSY.

Horizontal Thin

4шт.

38

87752116

ADJUSTING PLATE

Spacer

14шт.

39

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

16шт.

40

432-1624

COTTER PIN,1/4" x 1 1/2"

16шт.

41

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

43

87617156

BRACKET

Compactor Tilt Sensor

2шт.

44

86629544

NUT,5/16” – 18, GR B

4шт.

45

87617157

BLOCK

Compactor Position Sensor

4шт.

46

495-11034

WASHER,5/16", SAE

8шт.

47

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

48

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

8шт.

49

87752117

ADJUSTING PLATE

Compactor, Spacer For Clamp

2шт.

50

87736578

PLATE ASSY.

Auger Motor Mount

3шт.

51

87310321

NUT,Prevailing Torque, 1/2"-13, GB, DOR

6шт.

52

87660724

RUBBER

3шт.

53

87475068

SHIM

Plate Vertical Thick

8шт.

54

87475069

SHIM

Plate Vertical Thin

8шт.

55

87739281

PLATE

Scraper Flap

1шт.

56

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

8шт.
