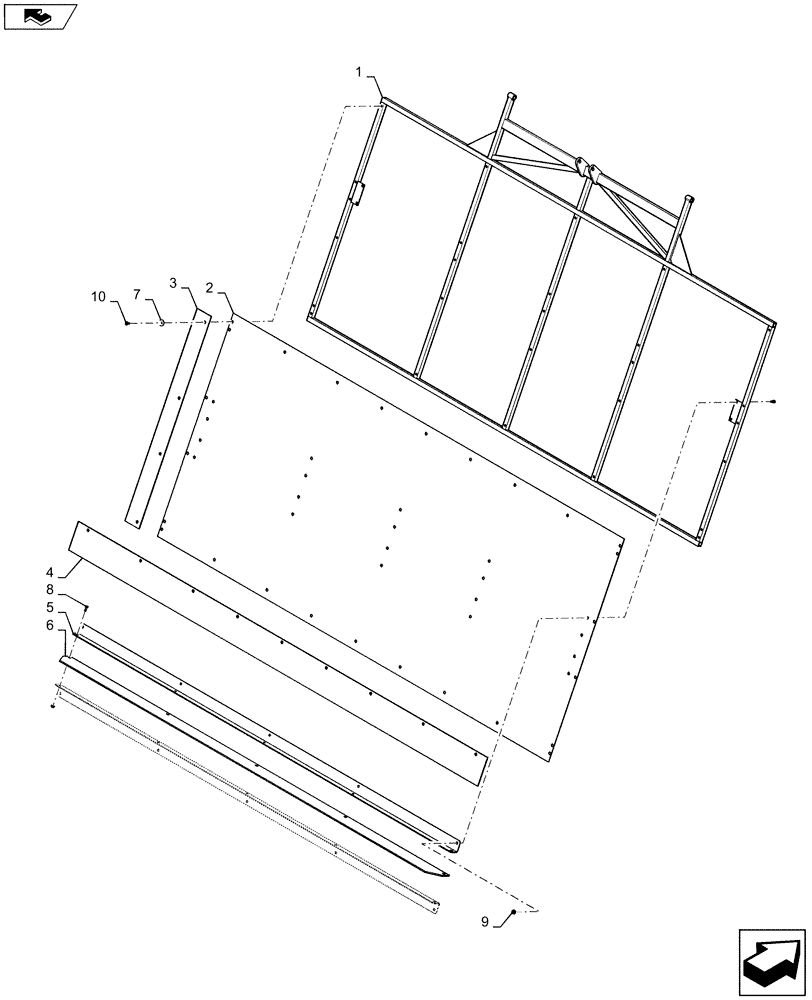

Запчасти Case IH 635 (80.200.08[04]) - LID, MODULE TAILGATE, MDL YEAR 2013 (80) - CROP STORAGE/UNLOADING

1

47584170

TAILGATE

Weld Assemby

1шт.

2

84519299

TAILGATE

Sheet

1шт.

3

47584175

SEAL

Tailgate, Outer

2шт.

4

47584176

SEAL

Tailgate, Lower

1шт.

5

84554175

BRACKET

Tailgate Flap

2шт.

6

84553779

FLAP

Tailgate, Comp Cleaner

1шт.

7

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

17шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

13шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

13шт.

10

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

25шт.
