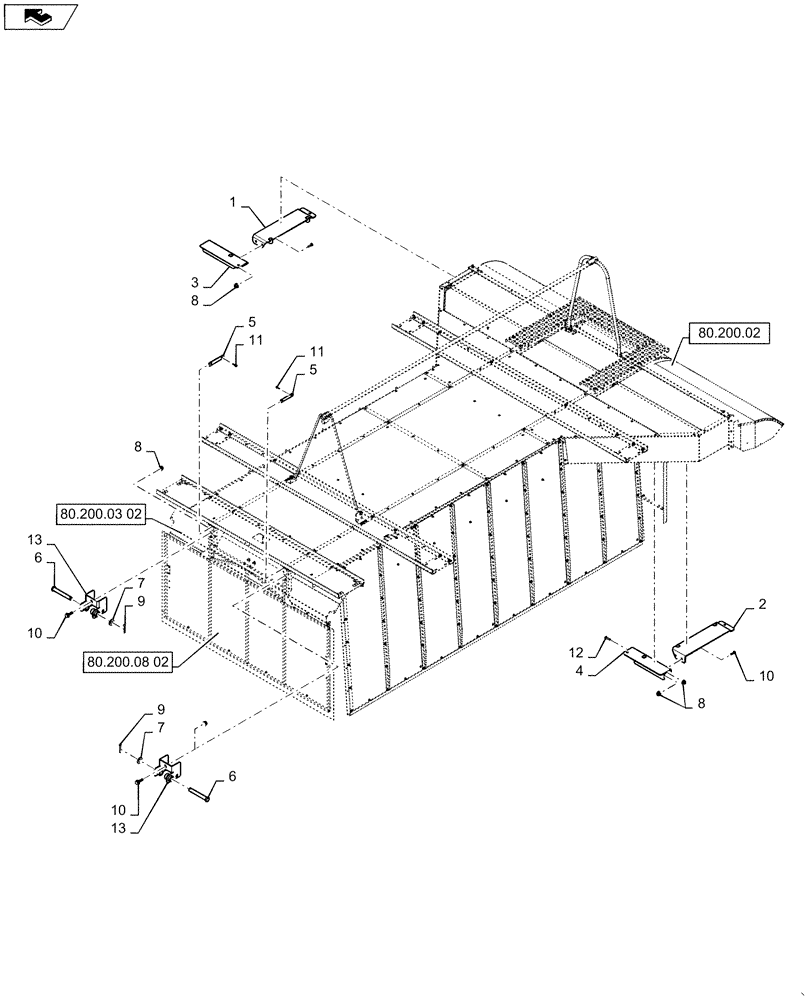

Запчасти Case IH 635 (80.200.08[03]) - LID, MODULE TAILGATE HARDWARE (80) - CROP STORAGE/UNLOADING

1

87450087

PLATE ASSY.

LH, Bellows Guide

1шт.

2

87450088

PLATE ASSY.

RH, Bellows Support

1шт.

3

84276547

BRACKET

LH Bellows Support Front

1шт.

4

84276548

BRACKET

RH Bellows Support Front

1шт.

5

87430772

SPACER, RING

Wall Gusset

2шт.

6

86624063

HEADED PIN,1/2" x 3 3/4"

2шт.

7

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

9

432-1216

COTTER PIN,3/16" x 1"

2шт.

10

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

11

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

4шт.

12

477-73124

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/2"

2шт.

13

84522382

BRACKET

Tailgate Receiver

2шт.
