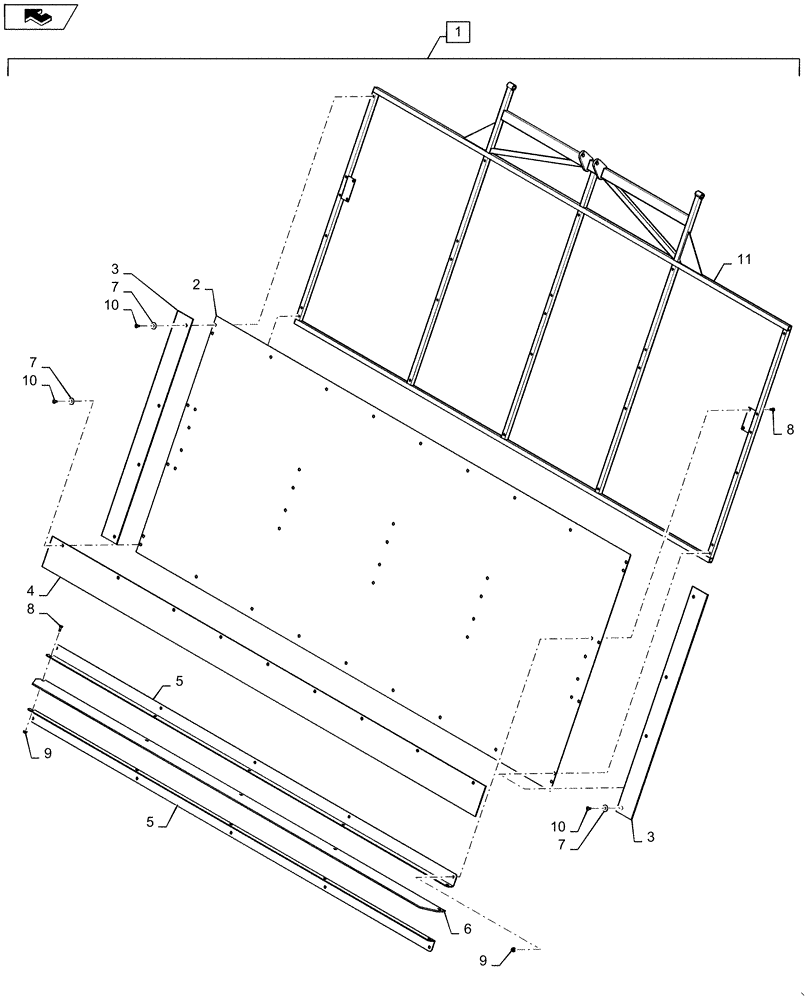

Запчасти Case IH 635 (80.200.08[02]) - LID, MODULE TAILGATE, MDL YEAR 2012 (80) - CROP STORAGE/UNLOADING

1

84515130

TAILGATE

Incl 2 - 11

1шт.

2

84519299

TAILGATE

Sheet

1шт.

3

84515172

SEAL

Tailgate, Outer

2шт.

4

84546563

SEAL

Tailgate, Lower

1шт.

5

84554175

BRACKET

Tailgate Flap

2шт.

6

84553779

FLAP

Tailgate, Comp Cleaner

1шт.

7

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

17шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

13шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

13шт.

10

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

25шт.

11

84515132

TAILGATE

Weld Assy

1шт.
