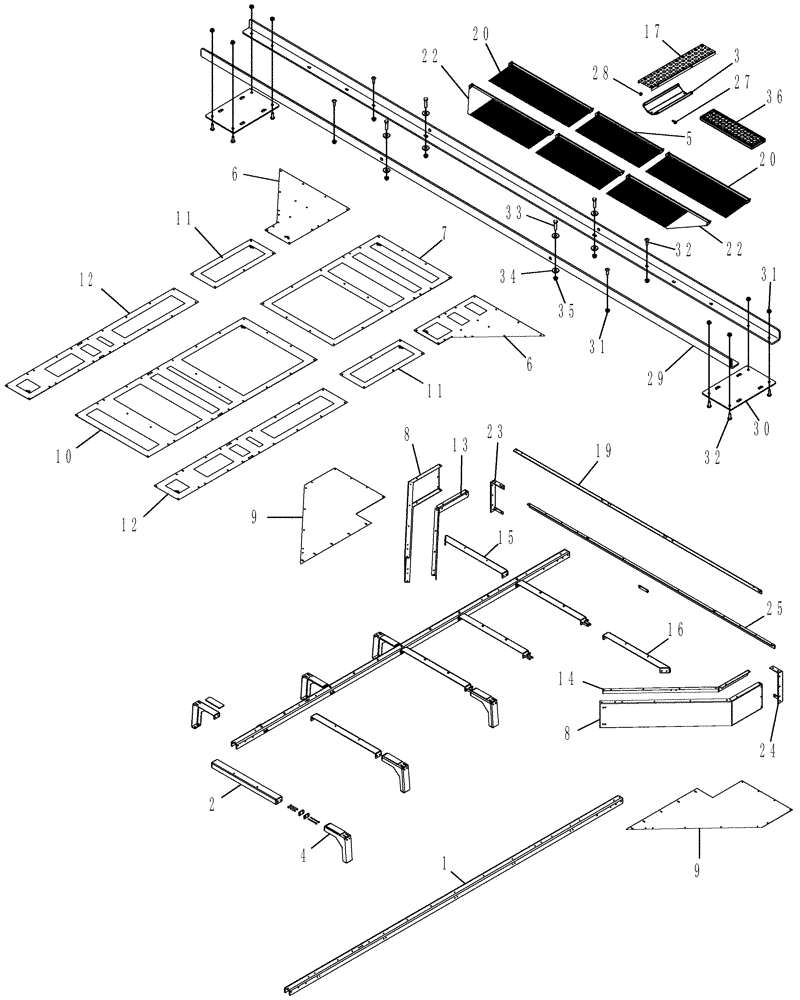

Запчасти Case IH 635 (80.200.07[01]) - LID, MODULE TOP (80) - CROP STORAGE/UNLOADING

1

87587523

SUPPORT

Grate, Front

2шт.

2

87632913

BRACE

5шт.

3

87339958

SUPPORT ASSY.

Lid Step

2шт.

4

87600257

BRACE

Lid Top Corner

6шт.

5

197674A1

DEFLECTOR

Basket Cover Top

2шт.

6

84197059

SHEET ASSY.

Large Holes

2шт.

6

84324296

SHEET

Small Holes

2шт.

7

87607522

SHEET ASSY.

Top Center Front, Large Holes

1шт.

7

84324293

SHEET

Top Center Front, Small Holes

1шт.

8

87326900

LID

2шт.

9

87426603

SHEET ASSY.

Bottom

2шт.

10

87607523

SHEET ASSY.

Top Center Rear, Large Holes

1шт.

10

84324286

SHEET

Top Center Rear, Small Holes

1шт.

11

87430070

SHEET ASSY.

Top Outer Front, Large Holes

2шт.

11

84324288

SHEET

Top Outer Front, Small Holes

2шт.

12

87607524

SHEET ASSY.

Top Outer Rear, Large Holes

2шт.

12

84324290

SHEET

Top Outer Rear, Small Holes

2шт.

13

87594279

SUPPORT ASSY.

Deflector Support, Left Hand

1шт.

14

87594278

SUPPORT ASSY.

Side, Right Hand

1шт.

15

87326898

LID

Roof Filler, Right Hand

1шт.

16

87326899

LID

Top Front, Right Hand

1шт.

17

87529733

STEP

Lid Top

2шт.

19

87330501

SUPPORT ASSY.

Inlet Support Top

1шт.

20

87330486

DEFLECTOR

Lid Front Row Outer

2шт.

21

87330488

DEFLECTOR

Second Row Outer, Right Hand

1шт.

22

87330487

DEFLECTOR

Second Row Outer, Left Hand

1шт.

23

87328743

SUPPORT ASSY.

Outer Inlet, Left Hand

1шт.

24

87328744

SUPPORT ASSY.

Outer Inlet, Right Hand

1шт.

25

87450095

ANGLE

Front Lid Wall Upper

1шт.

27

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

Lid Top Step

4шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Lid Top Step

4шт.

29

87594956

ANGLE

Guide Tube Support

4шт.

30

87426846

PLATE ASSY.

Guide Tube Support

4шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Guide Tube Support

24шт.

32

450-73116

SERRATED SCREW,5/16 x 1" SPL ZND

Guide Tube Support

28шт.

33

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

8шт.

34

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

16шт.

35

87327831

NUT

8шт.

36

87662224

PLATE

Platform Tread Plate

1шт.
