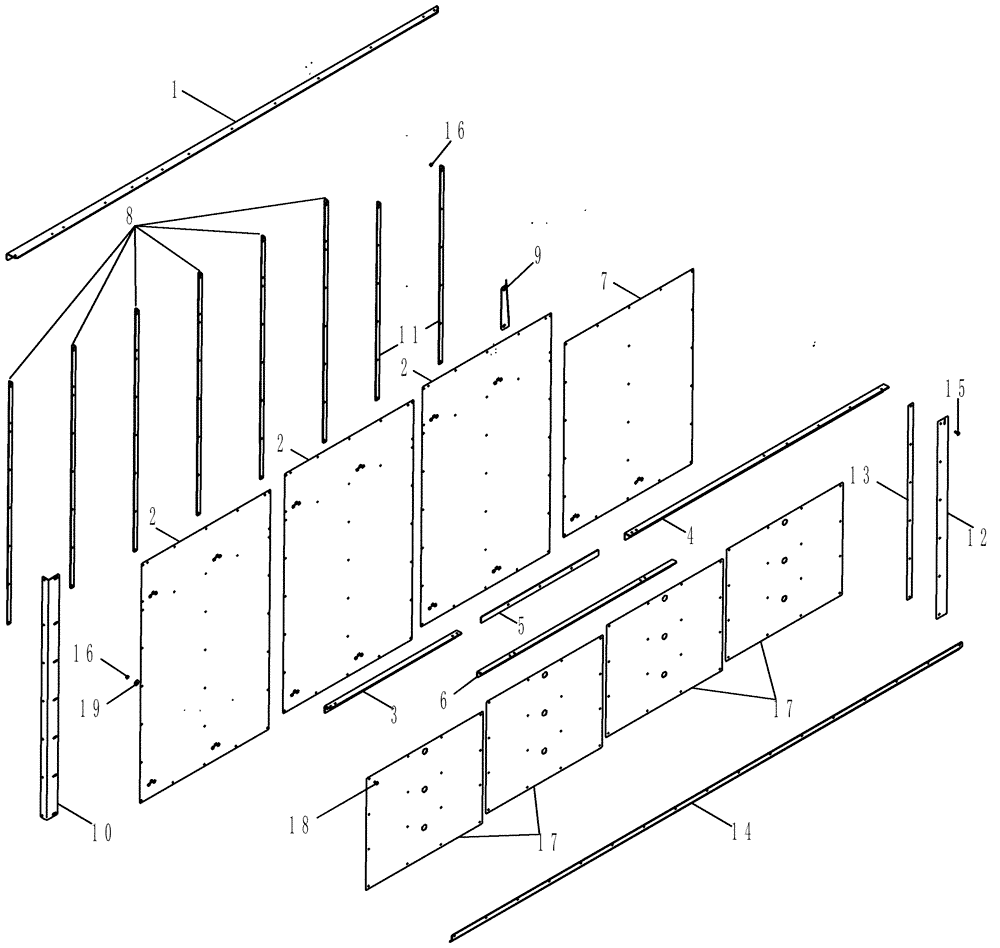

Запчасти Case IH 635 (80.200.05) - LID, MODULE, LEFT HAND WALL (80) - CROP STORAGE/UNLOADING

1

84197050

ANGLE

Lid Top Left Hand

1шт.

2

87430067

SHEET ASSY.

Side Wall, Large Holes

3шт.

2

84324282

SHEET

Side Wall, Small Holes

3шт.

3

87430062

ANGLE

Side Rear Left Hand

1шт.

4

87430060

ANGLE

Side Front Left Hand

1шт.

5

87430774

ANGLE

Side, Tie

1шт.

6

87430109

ANGLE

Side Middle Tie

1шт.

7

87428483

SHEET ASSY.

Side Wall Front, Large Holes

1шт.

7

84324284

SHEET

Side Wall Front, Small Holes

1шт.

8

87330497

ANGLE

Lid Left Hand Side Wall Vertical

6шт.

9

87430065

ANGLE

Hood Filler Left Hand

1шт.

10

87450266

ANGLE

Lid Left Hand Side Vertical Rear

1шт.

11

87330499

ANGLE

Lid Left Hand Side Wall Vertical Front

2шт.

12

87457337

LID

Side Wall Filler

1шт.

13

87457336

PLATE ASSY.

Lid Side Wall Backing

1шт.

14

87450291

ANGLE

Lower Lid Side Wall Inner

1шт.

15

450-73116

SERRATED SCREW,5/16 x 1" SPL ZND

80шт.

Quantity 79 Used With Small Hole Siding

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

144шт.

Quantity 79 Used With Small Hole Siding

1шт.

17

87602257

SHEET METAL

Lid Side Perforation Blanking

4шт.

Used Only With Large Holes

1шт.

18

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

64шт.

Used Only With Large Holes

1шт.

19

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

64шт.

Used Only With Large Holes

1шт.
