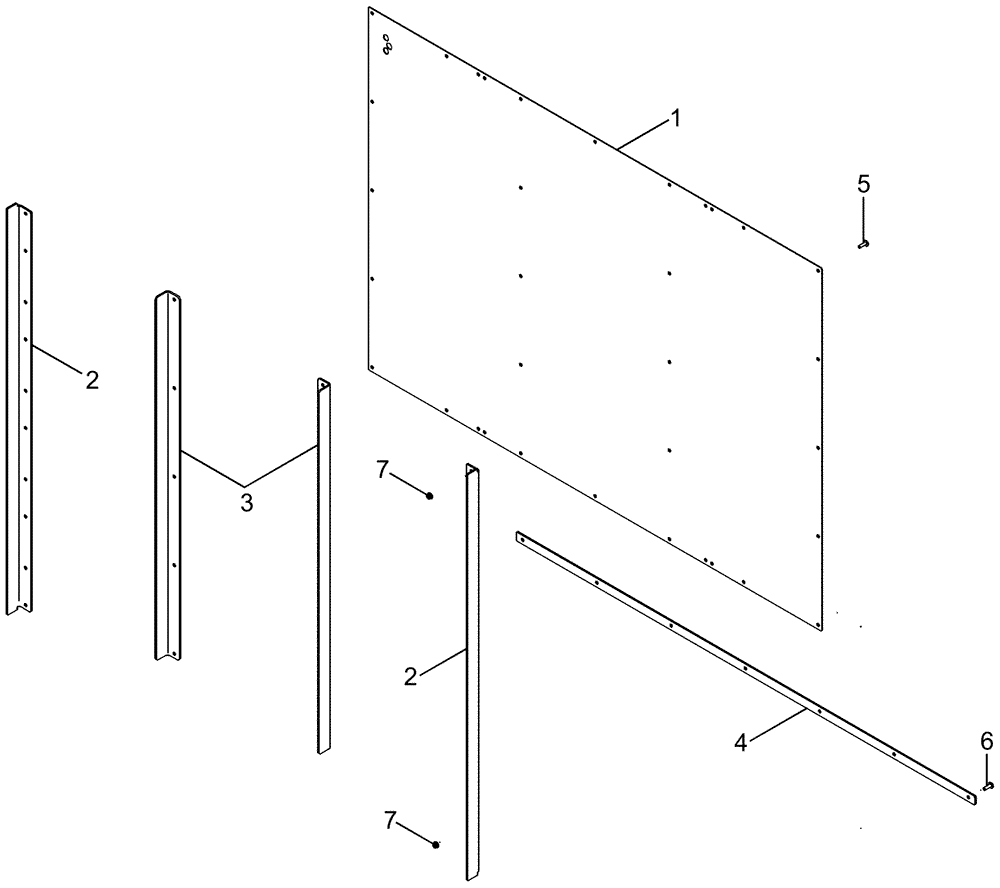

Запчасти Case IH 635 (80.200.02) - LID, MODULE, FRONT WALL (80) - CROP STORAGE/UNLOADING

1

87370245

SHEET METAL

Lid Front Wall, Large Holes

1шт.

1

84324279

SHEET

Lid Front Wall, Small Holes

1шт.

2

87370246

ANGLE

Lid Front Wall Vertical Outer

2шт.

3

87370247

ANGLE

Lid Front Wall Vertical Inner

2шт.

4

87562950

ANGLE

Lid Front Wall Bottom

1шт.

5

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

15шт.

6

450-73116

SERRATED SCREW,5/16 x 1" SPL ZND

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

19шт.
