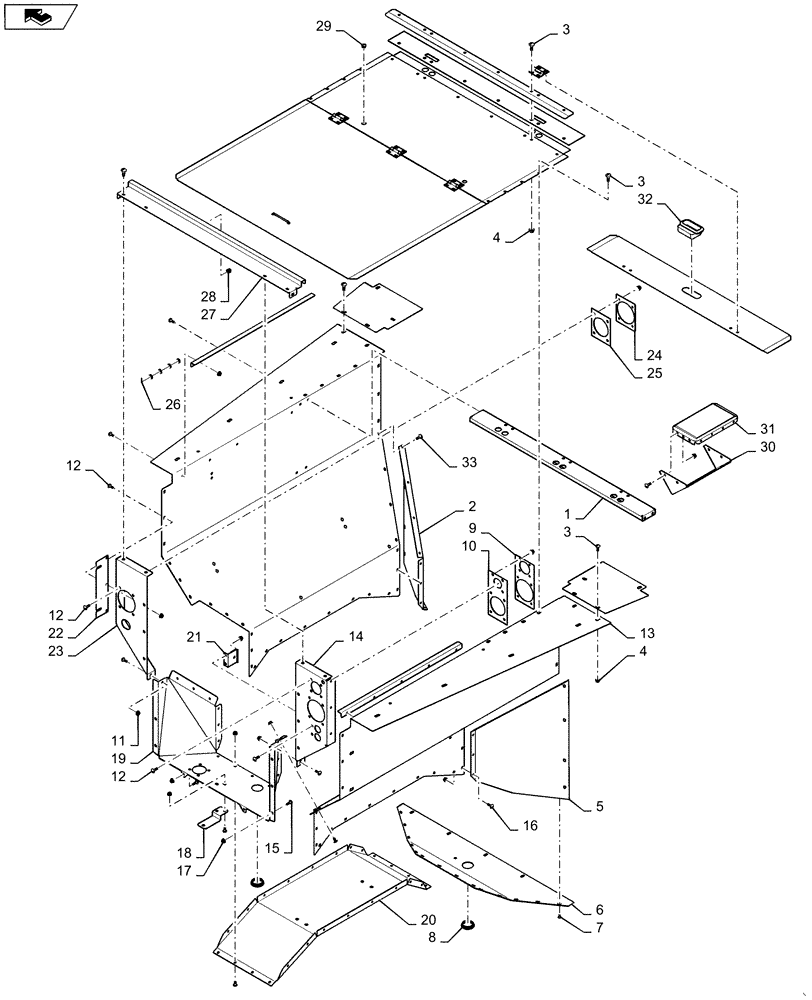

Запчасти Case IH 635 (74.141.25[02]) - AIR TUNNEL BOTTOM (74) - CLEANING

1

84224424

SHEET METAL

Channel Stiffener

1шт.

2

84406536

SHEET

Sheet RH Side Rear

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Screw Order As Needed

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Nut Order As Needed

1шт.

5

84406534

SHEET

Sheet LH Side Rear Air Tunnel

1шт.

6

84428248

SHEET

Sheet Bottom Rear Air Tunnel

1шт.

7

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

Screw

1шт.

8

205-67

HOLE PLUG BUTTON,2"

Plug Button

2шт.

9

84217679

MOUNT

Mount Tube Seal

1шт.

10

84217559

RUBBER SEAL

Seal

1шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Nut Order As Needed

1шт.

12

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

Screw

1шт.

13

84428110

SHEET

Sheet LH Side Air Tunnel

1шт.

14

84428231

SUPPORT

Support Mount LH

1шт.

15

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Screw

2шт.

16

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

Screw Order As Needed

1шт.

17

231-5146

FLANGE NUT,3/8"-16

Nut

2шт.

18

84173562

BRACKET

Mount Hydraulic Line

1шт.

19

84344303

SHEET METAL

Sheet Front Floor Air Tunnel

1шт.

20

84413092

SHEET

Sheet Bottom

1шт.

21

396393A1

BRACKET

Bracket Clamp Mount

1шт.

22

84190898

MOUNTING PLATE

Plate Mounting

1шт.

23

84406875

SHEET

Sheet RH Front Air Tunnel

1шт.

24

84169399

ANGLE

Mount Angle

1шт.

25

84135281

SEAL

Seal Charge Air Tubes

1шт.

26

280250

COTTER PIN,3/32" OD x 3/4" L

Cotter Pin

1шт.

27

84383418

ANGLE

Angle Front Door

1шт.

28

84182710

CLIP

Plastic Clip

1шт.

29

205-80

HOLE PLUG BUTTON,11/32"

Plug For Hole

2шт.

30

87402521

BRACKET

Bracket Air Tunnel Step

1шт.

31

87405728

STEP

Step Painted gray

1шт.

32

3962571

HANDLE

Handle

1шт.

33

87327194

SERRATED SCREW,Sl Truss Head, 1/4" - 20 x 1", Gr 8

Screw

2шт.
