Запчасти Case IH 635 (74.141.25[01]) - AIR TUNNEL TOP (74) - CLEANING

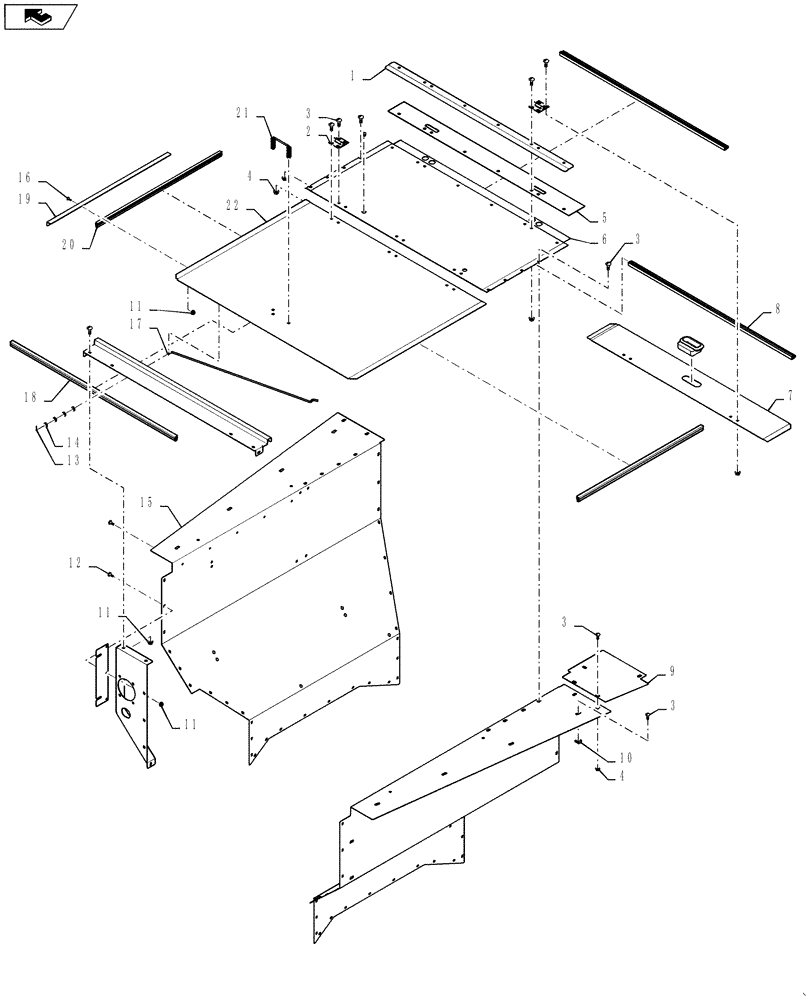

Схема запчастей Case IH 635 - (74.141.25[01]) - AIR TUNNEL TOP (74) - CLEANING
3
7
15
18
22
12
8
4
16
3
2
19
10
9
11
13
21
1
home
20
5
11
11
17
3
3
6
4
14

Артикул

Название

Примечание

Количество

1

84412054

ANGLE

Angle Door

1шт.

2

215720C1

HINGE

Hinge 2.5 inch

5шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Screw Order As Needed

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Nut Order As Needed

1шт.

5

84410879

SEAL SHEET

Sheet Rear rubber Sealing

1шт.

6

84411036

SHEET

Sheet Top Air Tunnel

1шт.

7

84480758

DOOR

Door Top Access

1шт.

8

84410885

RUBBER SEAL,1100mm L

Seal

1шт.

9

84410626

COVER

Cover Rear Tunnel

2шт.

10

131-137

SPRING NUT,Ret, 5/16"-18

Nut Order As Needed

1шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Nut Order As Needed

1шт.

12

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

Screw Order As Needed

1шт.

13

280250

COTTER PIN,3/32" OD x 3/4" L

Cotter Pin

1шт.

14

495-81102

WASHER,.266" x 1/2" x .060"

Washer

4шт.

15

84406532

SHEET

Sheet Right Hand Side Air Tunnel

1шт.

16

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

Screw Order As Needed

1шт.

17

84467719

LIFTING ROD

Rod Air Tunnel Prop

1шт.

18

84135284

RUBBER SEAL,1062mm L

Seal

2шт.

19

84169394

ANGLE

Angle Side Door

2шт.

20

84476800

SEALING STRIP

Seal

2шт.

21

87408511

HANDLE

Handle Retractable

1шт.

22

84476793

DOOR

Door Top Acess Air Tunnel

1шт.

Выбрано товаров: 22
