Запчасти Case IH 635 (74.141.24[01]) - REAR COOLER BOX AND SUPPORTS (74) - CLEANING

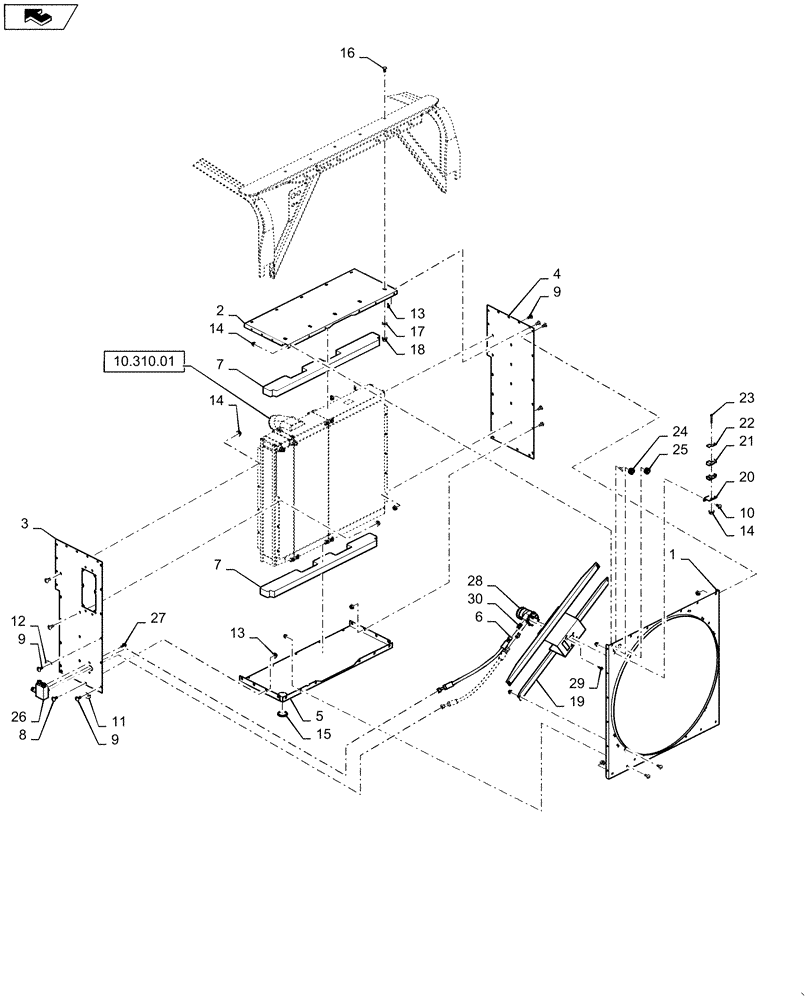

Схема запчастей Case IH 635 - (74.141.24[01]) - REAR COOLER BOX AND SUPPORTS (74) - CLEANING
17
8
15
13
home
10
10.310.01
7
21
2
3
24
30
25
12
22
14
14
9
20
18
13
5
14
19
9
1
6
4
23
7
26
11
29
27
9
16
28

Артикул

Название

Примечание

Количество

1

84169406

SHEET

Screen Support, Rotary Air Screen

1шт.

2

84224053

SHEET

Top, Rotary Air Screen

1шт.

3

84224021

SHEET

LH

1шт.

4

84224018

SHEET

RH

1шт.

5

84224055

SHEET

Bottom

1шт.

6

353667A1

HOSE

Motor to Bypass Valve

2шт.

7

84262067

STRIP

2шт.

8

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

36шт.

9

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

2шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

19шт.

11

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

12

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

38шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

15

205-128

HOLE PLUG BUTTON,2 1/2"

1шт.

16

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

5шт.

17

495-21056

WASHER,1/2"

5шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

19

392759A1

SUPPORT

Rotary Screen

1шт.

20

396393A1

BRACKET

1шт.

21

417931A1

HOSE CLAMP

1шт.

22

1347127C1

PLATE

1шт.

23

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

24

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

25

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

26

256839A3

HYD VALVE SECTION

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

28

401198A1

MOTOR, HYDRAULIC,GEAR, 97 CC

1шт.

29

87021006

BOLT,M10 x 26.4mm, Cl 10.9

4шт.

30

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

2шт.

Выбрано товаров: 30
