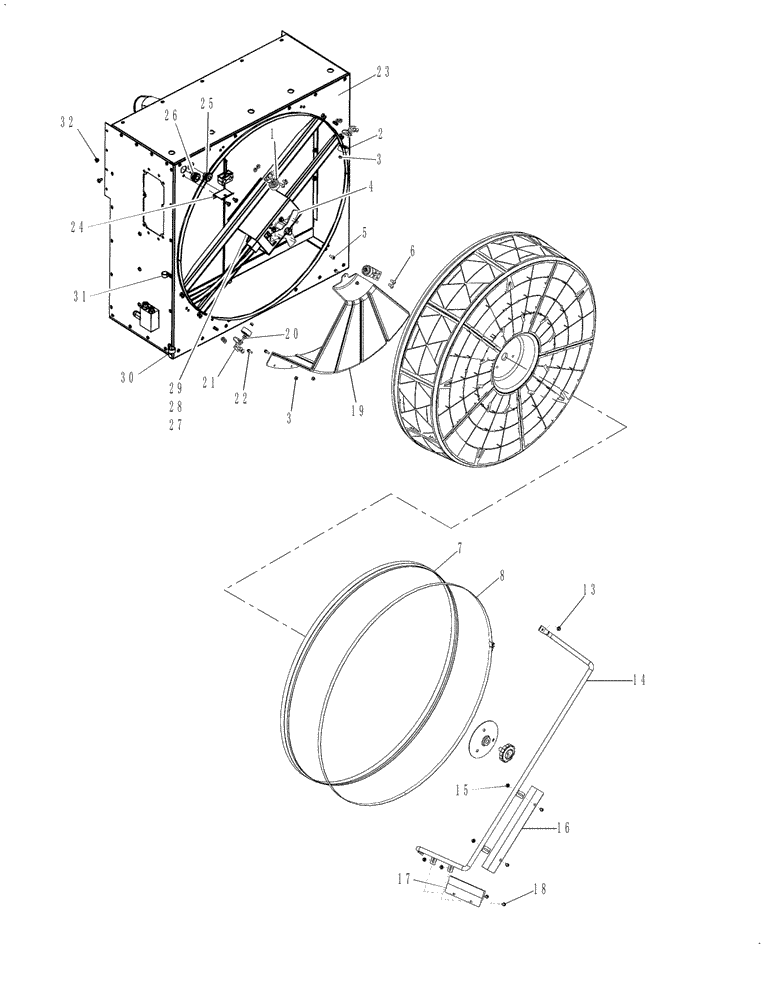

Запчасти Case IH 635 (74.141.22) - ROTARY AIR SCREEN MOUNTING AND BRUSHES (74) - CLEANING

1

411-416

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 2

4шт.

2

87408568

BALL BEARING,44.45mm OD

4шт.

2

47532534

BALL BEARING

, Start Year: 02-OCT-13

4шт.

3

9626558

FLANGE NUT,Flg, 1/4"-20

9шт.

4

396942A2

HUB

Rotary Air Screen

1шт.

5

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

1шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

7

87429394

SEAL,1008.8mm ID x 1012.6mm OD x 44.5mm Thk

Rotary Screen

1шт.

8

87420689

CLAMP,1060mm

Screen Seal Assembly Inc. 9-12

1шт.

9

86976658

CLAMP,1060mm

1шт.

10

113-83

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

1шт.

11

86625061

NUT,1/4"-20, GB

1шт.

12

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

1шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

14

395909A1

TUBE

Brush Support Assembly

1шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

16

395905A2

BRUSH

Rotary Screen

1шт.

17

395906A2

BRUSH

Rotary Screen

1шт.

18

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

4шт.

19

413961A3

BAFFLE

Rotary Air Screen

1шт.

20

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

2шт.

21

444034A2

SUPPORT

Ras Roller Bearing

4шт.

22

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

5шт.

23

84169406

SHEET

Rotary Screen Support

1шт.

24

396393A1

BRACKET

Clamp Mount

1шт.

25

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

26

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

27

87021006

BOLT,M10 x 26.4mm, Cl 10.9

4шт.

28

401198A1

MOTOR, HYDRAULIC,GEAR, 97 CC

1шт.

29

392759A1

SUPPORT

Rotary Screen

1шт.

30

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

31

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

19шт.
