Запчасти Case IH 635 (74.141.19) - CHUTE SUPPORT SYSTEMS (74) - CLEANING

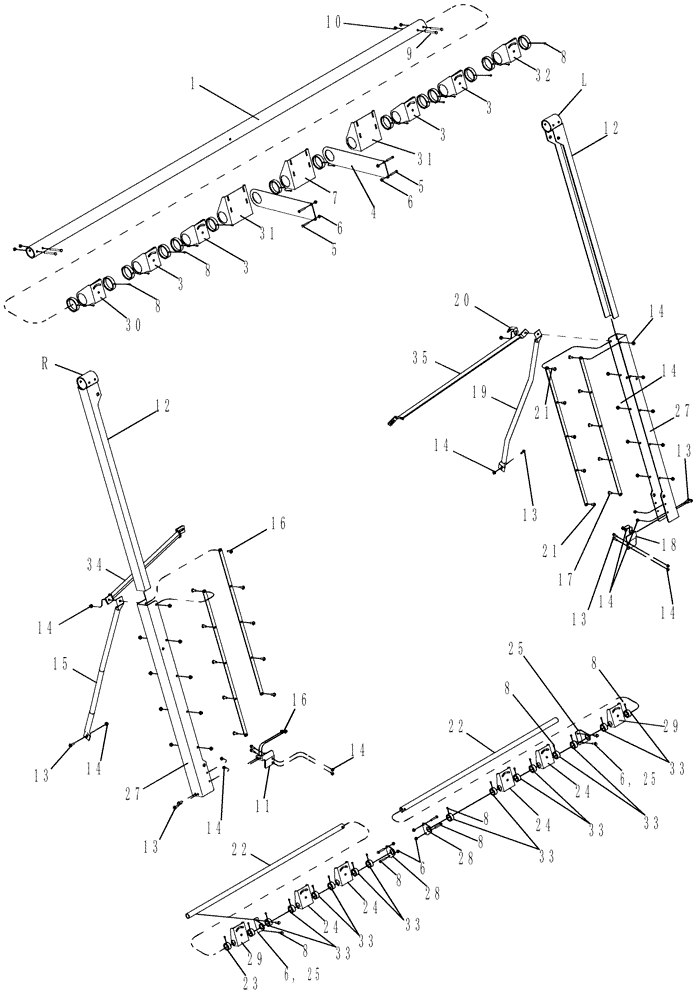

Схема запчастей Case IH 635 - (74.141.19) - CHUTE SUPPORT SYSTEMS (74) - CLEANING
33
1
28
31
3
35
22
6
5
33
13
18
12
3
14
27
14
16
24
8
r
14
33
8
24
21
12
20
8
13
14
14
16
5
25
13
21
17
6
14
15
23
24
33
13
3
29
24
8
11
34
19
14
13
3
33
30
33
7
8
9
8
29
4
33
14
6
28
32
14
10
31
8
22
l
27
8
8

Артикул

Название

Примечание

Количество

1

87663200

SUPPORT ASSY.

1шт.

2

87667011

COLLAR

30шт.

3

87663203

BRACKET

4шт.

4

87661972

BRACKET

2шт.

5

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

7шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

87663204

BRACKET

1шт.

8

483-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

32шт.

9

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

87724536

BRACKET

1шт.

12

87663195

CHANNEL

Telescoping

2шт.

13

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

5шт.

14

231-5146

FLANGE NUT,3/8"-16

7шт.

15

84184682

CHUTE

Telescoping Brace Pipe Right Side

1шт.

16

477-73824

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/2"

1шт.

17

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

1шт.

18

87724537

BRACKET

1шт.

19

84184552

CHUTE

Telescoping Brace Pipe Left Side

1шт.

20

284547A1

BRACKET

Light

1шт.

21

477-73832

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"

1шт.

22

87663202

BRACKET

Support Pipe

2шт.

23

87373020

TUBE,46.04 mm OD x 20 mm L

Water Tank Hyd Manifold Tab

16шт.

24

87416775

SUPPORT ASSY.

Cab Support Channel

4шт.

25

87663201

BRACKET

Pipe Mounting

2шт.

26

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

Water Tank Lower Gusset, Left

2шт.

27

87663198

CHANNEL

Telescoping

2шт.

28

87668632

BRACKET

2шт.

29

87416775

SUPPORT ASSY.

4шт.

Used on 6 Row Wide

1шт.

30

87663203

BRACKET

16шт.

Not used on Super 4 Row Wide

1шт.

31

87663204

BRACKET

2шт.

Used on 6 Row Narrow

1шт.

32

87663203

BRACKET

2шт.

Used on 6 Row Wide

1шт.

33

87373020

TUBE,46.04 mm OD x 20 mm L

Lock Collar

40шт.

34

84189711

BRACKET

1шт.

35

84188693

BRACKET

1шт.
