Запчасти Case IH 635 (74.141.17) - CONVEYOR CHUTES, SINGLE OUTER TELESCOPING, 6 ROW WIDE, NO. 3R, 4F (74) - CLEANING

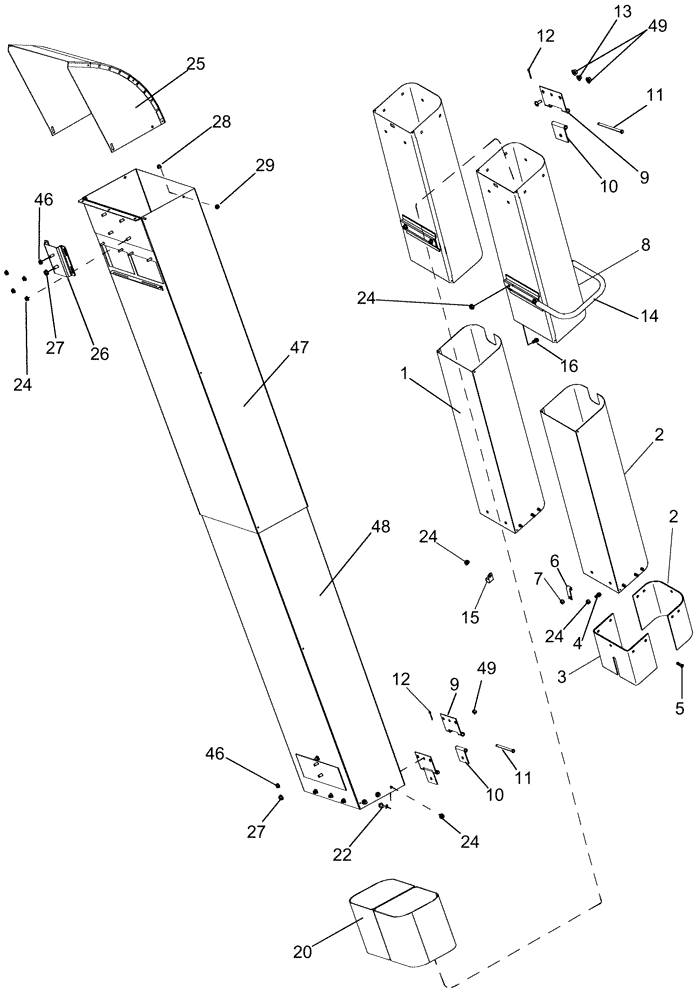

Схема запчастей Case IH 635 - (74.141.17) - CONVEYOR CHUTES, SINGLE OUTER TELESCOPING, 6 ROW WIDE, NO. 3R, 4F (74) - CLEANING
3
2
28
24
2
7
29
10
16
22
9
6
49
24
10
5
13
49
14
47
11
25
15
8
4
20
1
9
26
12
46
48
12
27
24
11
46
24
27
24

Артикул

Название

Примечание

Количество

1

1349803C1

CHUTE

Male, Lower, Outer, 3R, 4F

4шт.

2

131427A2

SHEET

Lower Front

4шт.

3

131428A2

SHEET

Lower Rear

4шт.

4

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

4шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

20шт.

6

1984343C1

HOOK

Air Pipe

4шт.

7

231-4115

NUT,5/16"-18, GB

4шт.

8

1984139C3

CHUTE

Female, Outer, 3R, 4F

4шт.

9

1349843C1

HINGE

Female

6шт.

10

1270014C1

HINGE

Male

6шт.

11

1349860C1

PIN,7.94mm OD x 129mm L

6шт.

12

432-816

COTTER PIN,1/8" x 1"

6шт.

13

231-4116

NUT,3/8"-16, GB

4шт.

14

123569A1

SUPPORT

Air Hose, Used On Machines With Dual Wheels

4шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

4шт.

16

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

20

131425A2

SHEET

Polyurethane, Single

2шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

24шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

64шт.

25

87663205

CHUTE

Hood, Single

2шт.

26

87368813

BRACKET

Upper Chute

2шт.

27

231-5346

FLANGE NUT,Flg, 3/8"-16

6шт.

28

87327190

SCREW,Truss HD, 1/4" x 1/2", Gr 8

8шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

46

231-5345

FLANGE NUT,Flg, 5/16"-18

4шт.

47

87368819

CHUTE ASSY.

Upper Single Outer

2шт.

48

87368818

CHUTE ASSY.

Upper Single Outer

2шт.

49

231-5146

FLANGE NUT,3/8"-16

12шт.

Выбрано товаров: 28
