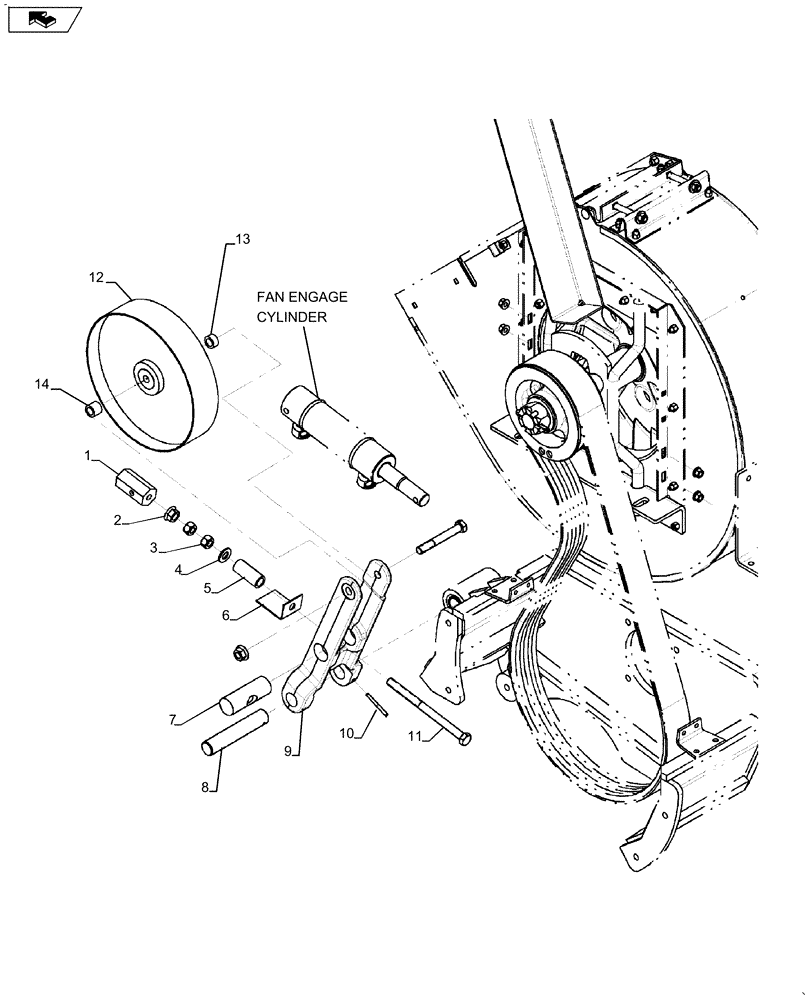

Запчасти Case IH 635 (74.141.12) - REAR FAN PULLEY LINKAGE (74) - CLEANING

1

138184A1

BLOCK

Bar Fan Idler

1шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

3

425-108

NUT,1/2" - 13, Gr 5

2шт.

4

495-11053

WASHER,1/2", SAE

1шт.

5

427075A1

SPRING

Fan Idler

1шт.

6

1990058C1

ANGLE

Spring guage

1шт.

7

1990152C1

PIN,31.75mm OD x 90mm L

Pivot Pin Rod

1шт.

8

1990151C1

SHAFT,25.4mm OD x 135mm L

Fan Idler Pivot

1шт.

9

1990156C1

ARM

Idler

1шт.

10

438-11232

LOCK PIN,3/16" x 2", Slotted

1шт.

11

113-2671

BOLT,Hex, 1/2" - 13 x 7", Gr 8

1шт.

12

1990198C1

PULLEY

1шт.

13

622535R1

SPACER,1/2" X-Strng Pipe x 7/16"

1шт.

14

25847D

SPACER,1/2" X-Strng Pipe x 11/16"

1шт.
