Запчасти Case IH 635 (74.141.09[01]) - REAR FAN HARDWARE (74) - CLEANING

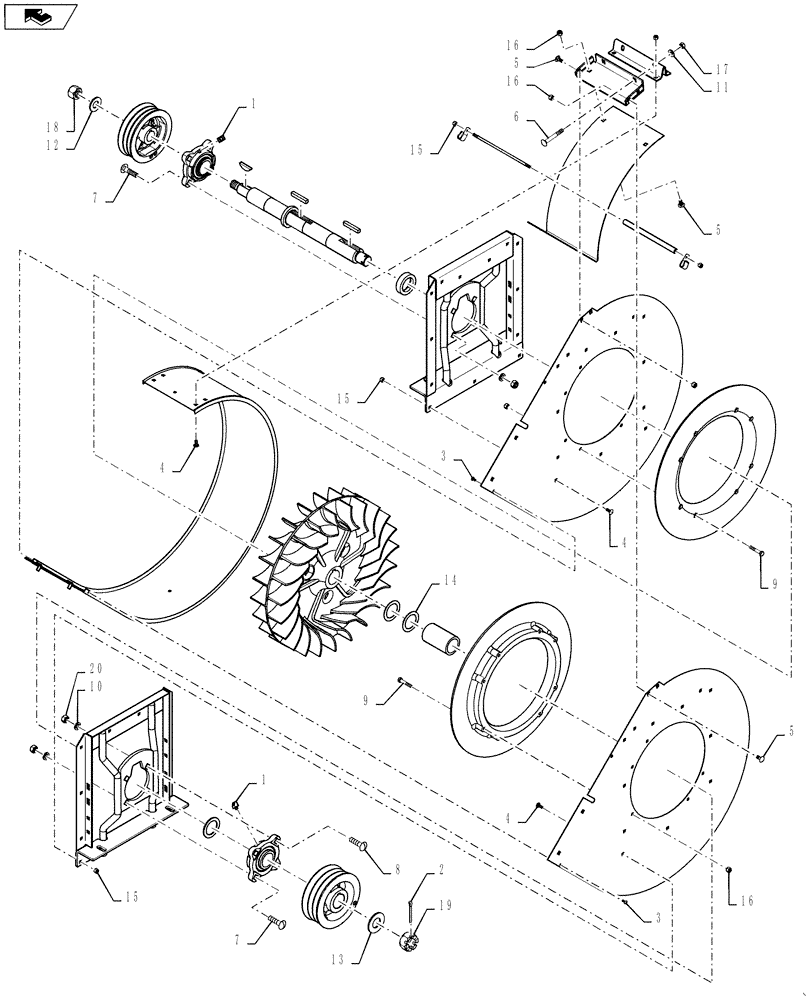

Схема запчастей Case IH 635 - (74.141.09[01]) - REAR FAN HARDWARE (74) - CLEANING
5
2
4
14
16
4
3
13
home
17
15
16
1
7
15
19
5
15
7
9
3
16
12
18
9
8
11
20
6
5
4
10
1

Артикул

Название

Примечание

Количество

1

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

Fitting Lube

2шт.

2

432-1636

COTTER PIN,1/4" x 2 1/4"

Cotter Pin

1шт.

3

260-1346

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

Screw Self Taping

2шт.

4

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

Bolt Carriage

30шт.

5

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

Bolt Carriage

6шт.

6

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

Bolt Carriage

2шт.

7

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

Bolt Carriage

7шт.

8

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

Bolt Carriage

1шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

Bolt

16шт.

10

492-11050

LOCK WASHER,1/2"

Washer

8шт.

11

495-21038

WASHER,5/16"

Washer

2шт.

12

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

Washer

1шт.

13

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

Washer

1шт.

14

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

Washer

2шт.

15

86625061

NUT,1/4"-20, GB

Lock Nut

32шт.

16

86050277

NUT,5/16"-18, GB

Lock Nut

22шт.

17

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

Lock Nut

2шт.

18

86632546

NUT,7/8"-14, GC

Lock Nut

1шт.

19

87355811

SLOTTED NUT

Hex Nut Slotted

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

Hex Nut

8шт.

Выбрано товаров: 20
