Запчасти Case IH 635 (74.141.09) - REAR FAN (OCT 14 2011 8:23AM) (74) - CLEANING

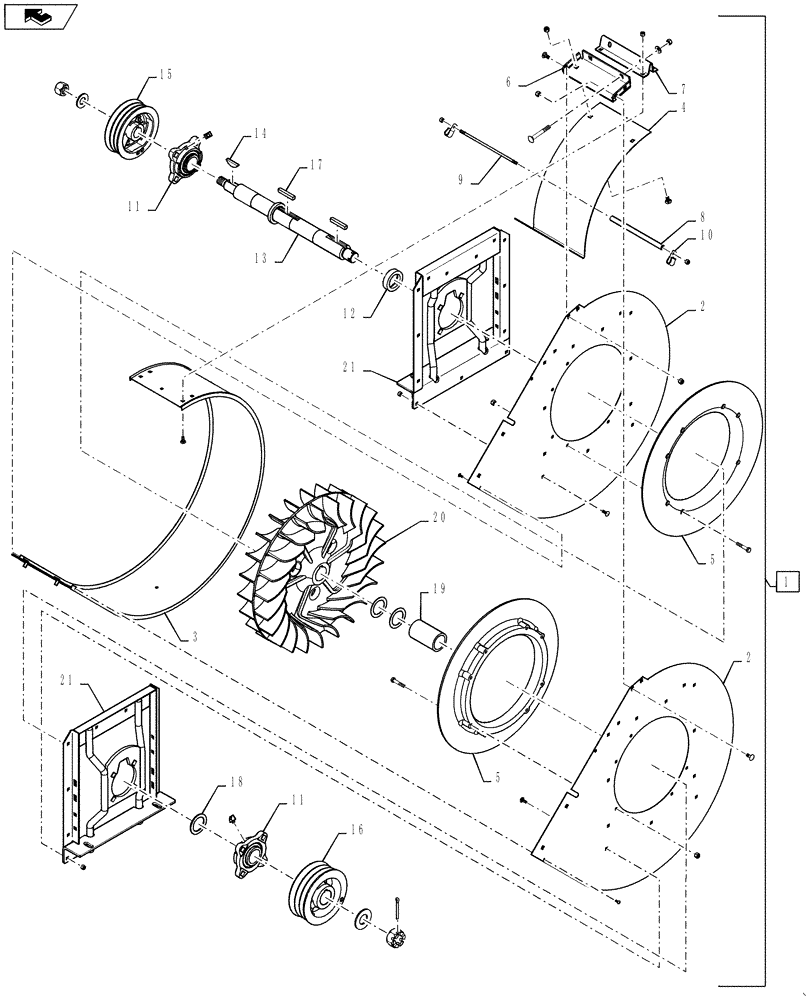

Схема запчастей Case IH 635 - (74.141.09) - REAR FAN (OCT 14 2011 8:23AM) (74) - CLEANING
14
home
16
5
8
11
18
11
12
5
21
3
1
17
2
7
6
19
15
9
10
20
13
4
21
2

Артикул

Название

Примечание

Количество

1

84172037

FAN

Rear Fan Assy

1шт.

2

1260066C2

PLATE

Plate Rear Fan Side

2шт.

3

221533C1

COVER

Cover Outer

1шт.

4

204416C1

BAFFLE

Fan Baffle

1шт.

5

207515C1

BAFFLE

Fan Baffle

2шт.

6

204415C1

SUPPORT

Support Bolt Anchor

1шт.

7

204414C1

SUPPORT

Support Tie Bracket

1шт.

8

215020C1

PIPE

Pipe Fan Housing

1шт.

9

215709C1

STUD

Stud Fan Housing Connector

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

Clip Head Lamp Cable Harness

2шт.

11

84522645

BALL BEARING

W/ Out Lock Collar

1шт.

12

86999734

COLLAR,44.48mm ID x 63.5mm OD x 18.3mm W

Collar Lock

1шт.

13

405117A2

SHAFT

Shaft Assy fan

1шт.

14

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

Key Woodruff

1шт.

15

1338322C1

PULLEY

Pulley Front Fan Drive

1шт.

16

84157163

PULLEY,174mm OD

Pulley Fan

1шт.

17

657206R1

KEY,3/8" Sq x 2 3/8", Par

Square Parallel Keys

2шт.

18

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

Washer

1шт.

19

243037A1

SPACER

Spacer Fan Shaft

1шт.

20

243041A1

ROTOR

Rotor fan Cotton Picker

1шт.

21

243038A2

SIDE ASSY.

Support Assy Fan Side

2шт.

Выбрано товаров: 21
