Запчасти Case IH 635 (74.141.06) - DRUM OUTLETS, REAR, 6 ROW NARROW, NO. 4 (74) - CLEANING

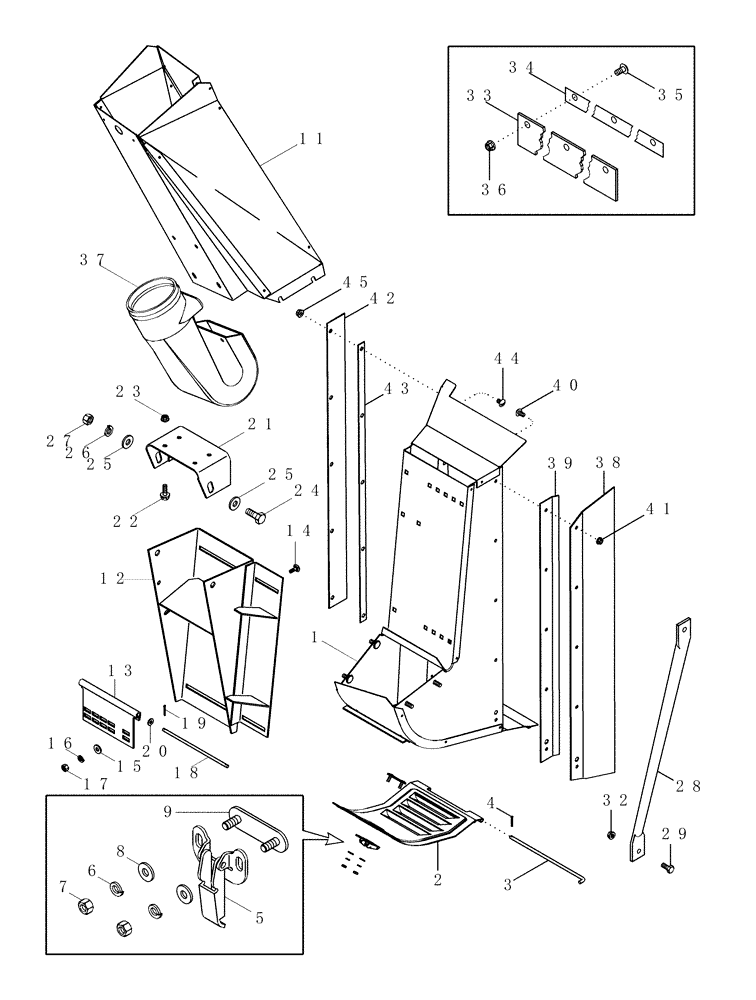

Схема запчастей Case IH 635 - (74.141.06) - DRUM OUTLETS, REAR, 6 ROW NARROW, NO. 4 (74) - CLEANING
8
27
12
41
29
43
7
17
40
2
19
5
22
6
34
18
38
3
33
32
37
45
44
14
36
21
16
39
1
9
4
26
25
25
13
15
24
20
11
28
23
35
42

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

REAR OUTLET, Inc. 1 - 9, 38 - 45

1шт.

1

87430569

OUTLET

Rear

1шт.

2

119753A1

TRAP DOOR

Access, Rear Outlet, 4 Louvers

1шт.

3

1984110C2

PIN,6.25mm OD

Hinge

1шт.

4

432-612

COTTER PIN,3/32" x 3/4"

1шт.

5

1333780C1

LATCH

Hinge, Access Door

1шт.

7

225-14210

NUT,#10-32

2шт.

6

492-11010

LOCK WASHER,#10

2шт.

8

495-31022

WASHER,#10

4шт.

9

119069A1

PLATE

Outlet Door Latch

1шт.

11

1984090C3

HOUSING

Outlet, Rear Drum, No. 4

1шт.

12

1984168C4

SUPPORT

Support, Rear

1шт.

13

87330915

HINGE

Rear Door Support

1шт.

14

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

15

495-11034

WASHER,5/16", SAE

6шт.

16

492-11031

LOCK WASHER,5/16"

6шт.

17

425-105

NUT,5/16"-18, G5

6шт.

18

1984153C1

STEM

Outlet Support

1шт.

19

32-812

COTTER PIN,1/8" x 3/4"

2шт.

20

495-11034

WASHER,5/16", SAE

2шт.

21

1990466C2

SUPPORT

Rear Outlet Adjustment

1шт.

22

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

4шт.

23

145458

SERRATED NUT,5/16"-18 GR 5 ZND

12шт.

24

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

25

495-11053

WASHER,1/2", SAE

4шт.

26

392-21050

LOCK WASHER,1/2"

2шт.

27

425-108

NUT,1/2" - 13, Gr 5

2шт.

28

1984349C1

SUPPORT

Door

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

33

1546051C2

SEALING STRIP

44 mm wide x 784 mm lg, Outlet

1шт.

34

1546224C1

LARGE PLATE

PLATE, LARGE Backup, Outlet Seal

1шт.

35

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5шт.

37

1349941C2

NOZZLE INJECTION

1шт.

38

87404722

RUBBER SEAL,114.3mm W x 783mm L

1шт.

39

87404723

ANGLE

1шт.

40

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

5шт.

41

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

42

1546051C2

SEALING STRIP

Doffer Post Outlet Seal

1шт.

43

1546224C1

LARGE PLATE

PLATE, LARGE Rubber Backup

1шт.

44

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

Выбрано товаров: 41
