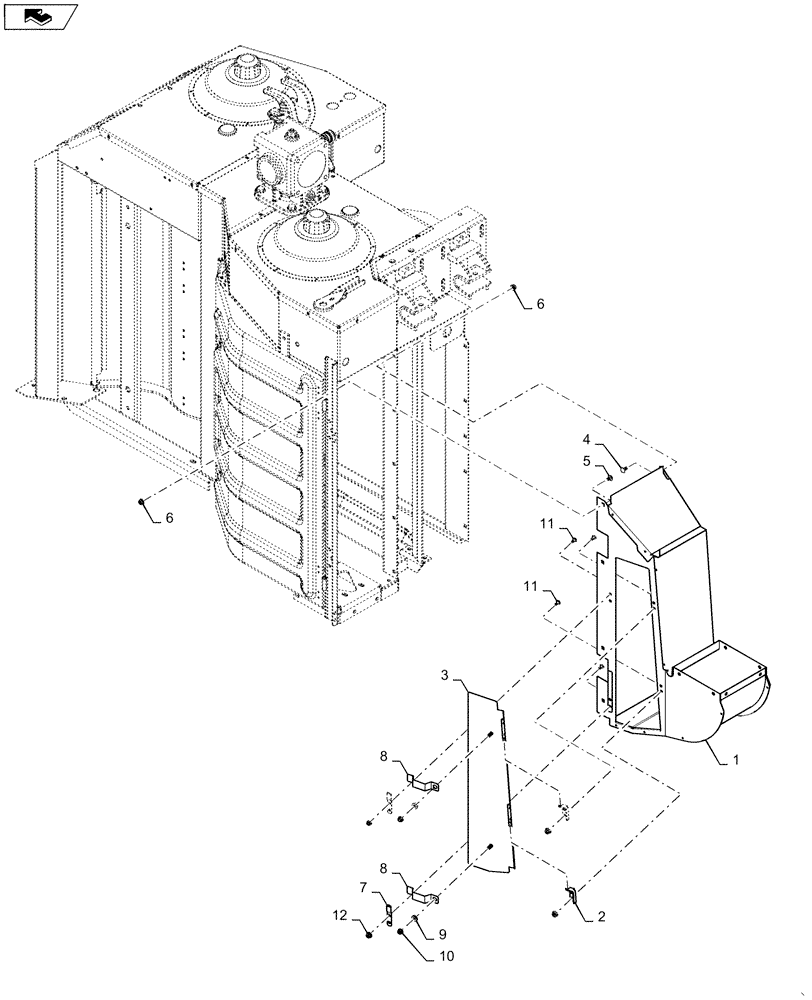

Запчасти Case IH 635 (74.141.05[02]) - DRUM OUTLETS, REAR, 6 ROW WIDE, NO. 2, IMPROVED ACCESS (74) - CLEANING

1

84491565

OUTLET

Standard Rear

1шт.

2

84514067

ANGLE

Hinge

2шт.

3

84498810

DOOR

Rear Outlet Access

1шт.

4

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

3шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

7

84511907

LATCH

Hasp, Outlet Side

2шт.

8

84511921

LATCH

2шт.

9

87360034

SPACER,8.48mm ID x 12.7mm OD x 3.5mm L

2шт.

10

231-5345

FLANGE NUT,Flg, 5/16"-18

2шт.

11

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

8шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.
