Запчасти Case IH 635 (74.141.04) - DRUM OUTLETS, REAR, 6 ROW NARROW, NO. 3 (74) - CLEANING

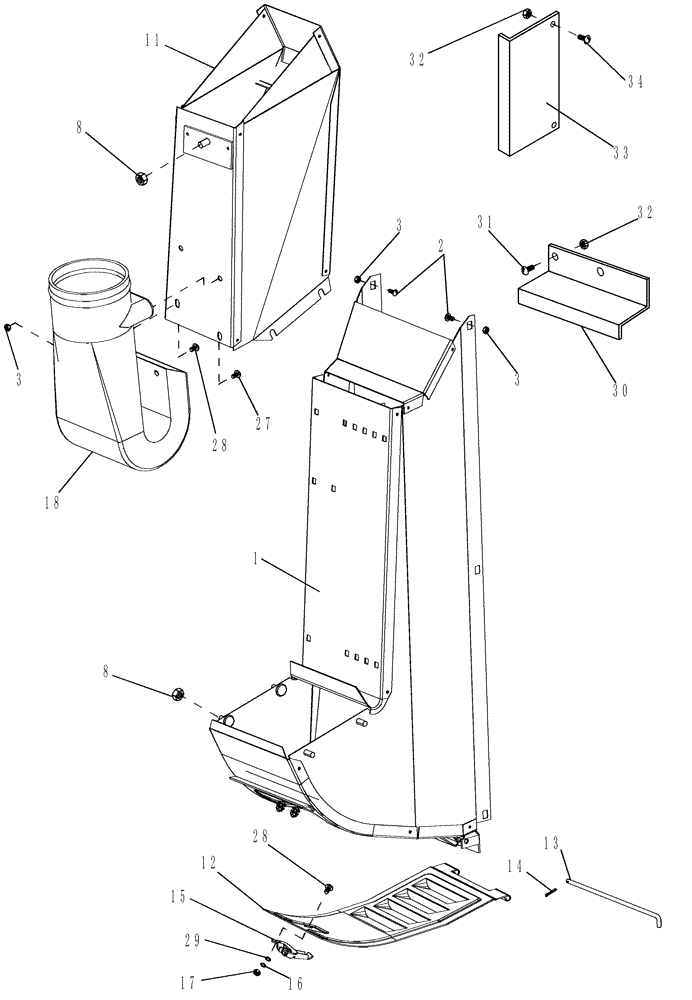

Схема запчастей Case IH 635 - (74.141.04) - DRUM OUTLETS, REAR, 6 ROW NARROW, NO. 3 (74) - CLEANING
8
3
3
13
28
32
18
11
16
30
8
17
1
27
31
32
14
33
15
2
12
34
29
28
3

Артикул

Название

Примечание

Количество

87454861

PACKAGE

Rear Outlet, Inc. 1 - 3, 12 - 17, 28, 29

1шт.

1

87432339

PACKAGE

Rear Drum Outlet, 5 Row Narrow, No. 3, Inc. 12 - 17, 28, 29

1шт.

2

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

431798A1

PACKAGE

Rear Extension, Inc. 8, 11, 25

1шт.

11

1984095C2

HOUSING

Outlet, Rear Drum, 6 Row Narrow, No. 3

1шт.

12

119753A1

TRAP DOOR

Access, Rear Outlet

1шт.

13

1984110C2

PIN,6.25mm OD

Hinge

1шт.

14

432-612

COTTER PIN,3/32" x 3/4"

1шт.

15

1333780C1

LATCH

Hinge, Access Door

1шт.

16

492-11010

LOCK WASHER,#10

2шт.

17

225-14210

NUT,#10-32

2шт.

431767A1

AIR DUCT

Rear Nozzle, Inc. 18, 26, 27, 3 (2)

1шт.

18

1349941C2

NOZZLE INJECTION

Drum Outlet, Rear, Short

1шт.

25

231-4116

NUT,3/8"-16, GB

4шт.

26

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

27

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

28

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

29

495-31022

WASHER,#10

4шт.

30

119057A1

SUPPORT

Extension

1шт.

31

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

33

119058A1

SUPPORT

Extension

1шт.

34

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

Выбрано товаров: 26
