Запчасти Case IH 635 (74.141.03) - DRUM OUTLETS, FRONT, 6 ROW NARROW, NO. 2 (74) - CLEANING

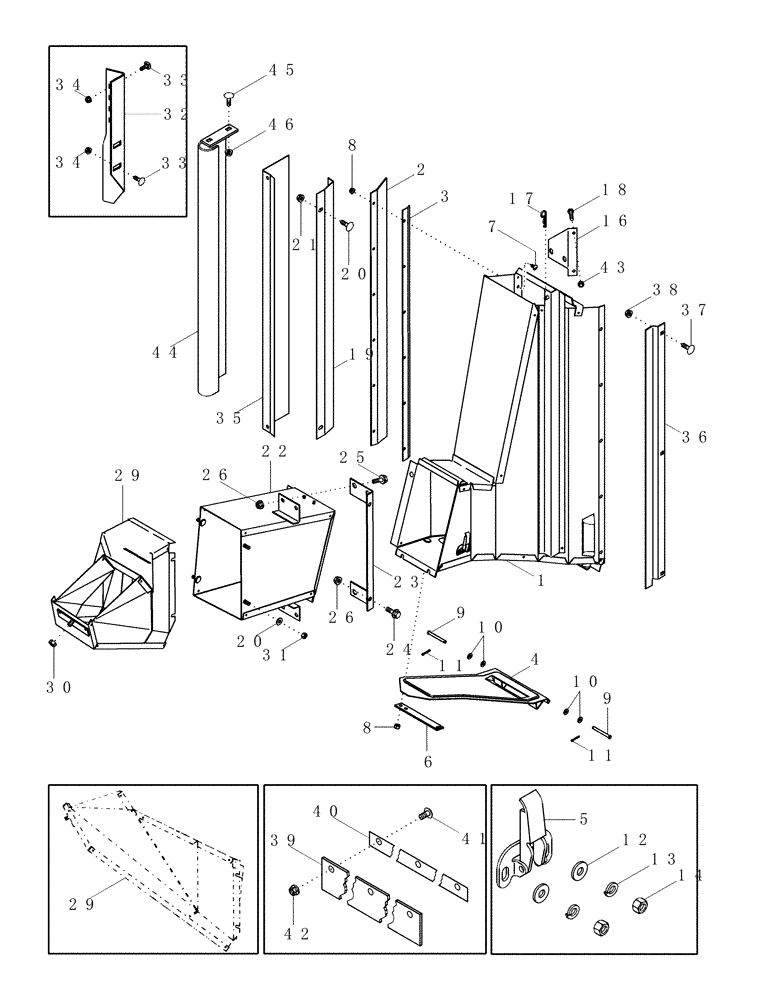

Схема запчастей Case IH 635 - (74.141.03) - DRUM OUTLETS, FRONT, 6 ROW NARROW, NO. 2 (74) - CLEANING
39
38
7
33
34
16
30
13
31
20
43
29
12
21
9
33
11
9
25
46
45
29
26
14
34
20
11
18
26
37
8
36
19
10
4
5
10
41
42
44
24
17
32
40
8
1
35
22
2
23
3
6

Артикул

Название

Примечание

Количество

1

87430573

OUTLET

Drum, 6 Row Narrow, No. 2, Inc. 2 - 15

1шт.

2

87404809

GASKET

1шт.

3

87404810

LARGE PLATE

PLATE, LARGE

1шт.

4

1349891C4

TRAP DOOR

Access

1шт.

5

1333780C1

LATCH

Hinge, Access Door

1шт.

6

1349890C2

LATCH

Outlet Door

1шт.

7

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

6шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

9

439-1440

HEADED PIN,1/4" x 2 1/2"

2шт.

10

495-11028

WASHER,1/4", SAE

4шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

12

495-31022

WASHER,#10

2шт.

13

492-11010

LOCK WASHER,#10

2шт.

14

225-14210

NUT,#10-32

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

16

1546254C1

ANGLE BAR

Access Cover, Outlet Latch

1шт.

17

586591R1

COTTER PIN

1/8

1шт.

18

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

2шт.

19

1984455C2

ANGLE

Trash Opening

1шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

22

129595A2

EXTENSION

Outlet, 6 Row Narrow, No. 2

1шт.

23

118909A1

SUPPORT

Outlet Extension, 6 Row Narrow, No. 2

1шт.

24

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

27

87449033

SUPPORT

1шт.

28

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

29

1984042C2

HOUSING

Rear Section, 6 Row Narrow, No. 2

1шт.

30

232-4136

LOCK NUT,3/8"-16, GC

1шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

32

1546006C2

SUPPORT

Duct, 6 Row Narrow, No. 2

1шт.

33

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

4шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

35

1984470C2

ANGLE

Trash Opening, Inner

1шт.

36

1984471C1

DEFLECTOR

Trash Post

1шт.

37

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

3шт.

38

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

39

1546051C2

SEALING STRIP

44 mm wide x 784 mm lg, 6 Row Narrow, No. 2

1шт.

40

1546224C1

LARGE PLATE

PLATE, LARGE Backup, Outlet Seal, 6 Row Narrow, No. 2

1шт.

41

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

43

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

44

131616A1

SHEET

Doffer Post

1шт.

45

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

Выбрано товаров: 46
