Запчасти Case IH 635 (74.141.01) - DRUM OUTLETS, FRONT, 6 ROW NARROW, NO. 1, 3, 4 AND 5 (74) - CLEANING

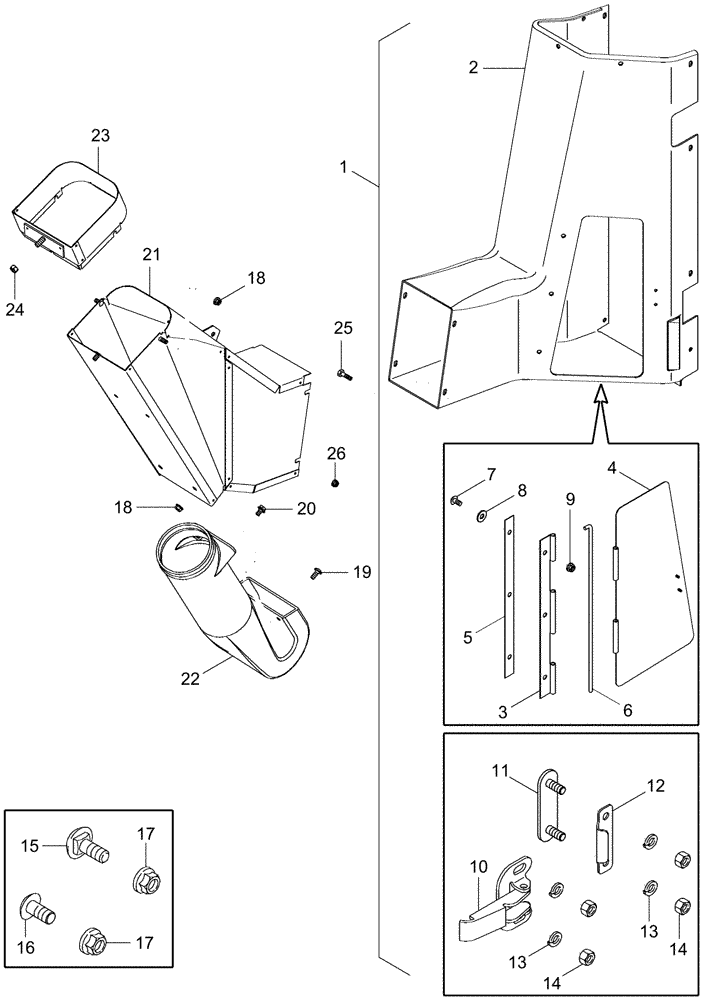

Схема запчастей Case IH 635 - (74.141.01) - DRUM OUTLETS, FRONT, 6 ROW NARROW, NO. 1, 3, 4 AND 5 (74) - CLEANING
4
14
25
16
1
10
23
5
8
13
21
11
22
14
2
15
17
26
9
24
17
12
18
18
6
7
3
13
19
20

Артикул

Название

Примечание

Количество

87454859

PACKAGE

Front Outlets, Inc. 1 - 17

1шт.

1

87426118

OUTLET

Front, Inc. 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

OUTLET, Front

1шт.

3

87426125

HINGE

1шт.

4

87426121

DOOR

1шт.

5

87430153

STRAP

1шт.

6

87426124

PIN

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

3шт.

8

496-41034

WASHER,.344" x 1" x .098", HDN

3шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

10

1333780C1

LATCH

Hinge, Access Door

1шт.

11

119069A1

PLATE

1шт.

12

87430154

STRAP

1шт.

13

492-11010

LOCK WASHER,#10

4шт.

14

225-14210

NUT,#10-32

4шт.

15

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

3шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

17

231-4115

NUT,5/16"-18, GB

7шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

431728A1

PACKAGE

Front Extension, Inc. 21, 18 (6), 19 (2), 25, 26

1шт.

431797A1

PACKAGE

Front Extension, Inc. 21A, 18 (6), 19 (2), 25, 26

1шт.

21

1349927C2

HOUSING

Front Outlet, 5 Row Narrow, No. 1 and 4

1шт.

21a

1349962C2

HOUSING

Front Outlet, 5 Row Narrow, No. 3 (Not Shown)

1шт.

431245A1

PACKAGE

Front Nozzles, Inc. 18 (2), 19 (2), 20, 22 (1)

1шт.

22

1984189C2

NOZZLE

Front Outlet, Long

1шт.

431244A1

PACKAGE

Front Transition, Inc. 18 (3), 23, 24

1шт.

23

1546036C1

ADAPTER

Front Outlet Extension, 6 Row Narrow, No. 1, 4 and 5

1шт.

24

231-4116

NUT,3/8"-16, GB

1шт.

25

411-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

4шт.

26

131-889

PUSH-ON NUT,5/16", Push-on

4шт.

Выбрано товаров: 32
