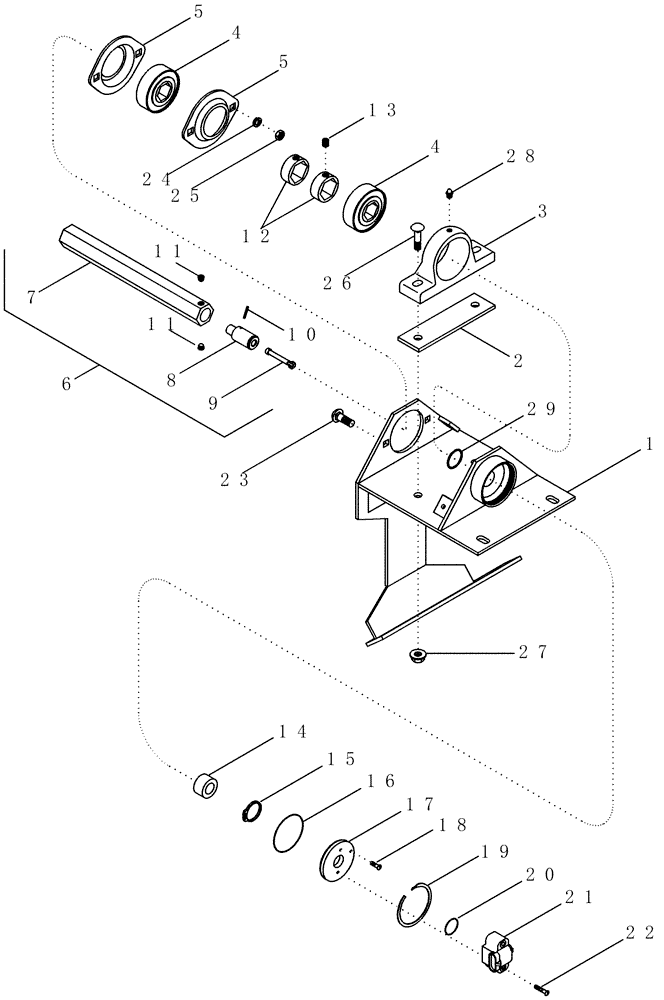

Запчасти Case IH 635 (60.600.45) - ROW GUIDANCE SYSTEM, PROBE BOX, OPTIONAL (60) - PRODUCT FEEDING

436244A1

BOX

Probe, Inc. 1 - 20, 22 - 29, Does Not Include Ref. 21

1шт.

1

444679A1

SUPPORT

1шт.

2

444783A1

SHIM

11 Ga

1шт.

2

86988231

SHIM

16 Ga

1шт.

3

444784A1

BEARING CARRIER

Pillow Block

1шт.

4

444782A1

FLANGED BEARING

7/8 Hex Bore

1шт.

5

86988230

FLANGE,Bearing

2шт.

6

86988229

SHAFT ASSY.

Inc. 7 - 11

1шт.

7

444781A1

SHAFT

7/8

1шт.

8

444785A1

TUBE

1шт.

9

445381A1

SHAFT

1шт.

10

138-2059

PIN,1/16" x 3/4", Coiled

1шт.

11

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

2шт.

12

86984426

COLLAR

7/8 Hex

2шт.

13

483-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

2шт.

14

86988232

BEARING,12.7 mm ID

1шт.

15

100-1155

SNAP RING,#55, Ext

1шт.

16

14455280

O-RING,2.239" ID x 0.07" Width

1шт.

17

400040A1

DISC

1шт.

18

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

1шт.

19

86985158

RING

2 -1/4

1шт.

20

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

21

400041A1

SENSOR

Rotory

1шт.

22

440-10820

SCREW,Cross Pan Hd, #8-32 x 1 1/4"

2шт.

23

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

24

492-11031

LOCK WASHER,5/16"

2шт.

25

425-105

NUT,5/16"-18, G5

2шт.

26

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
