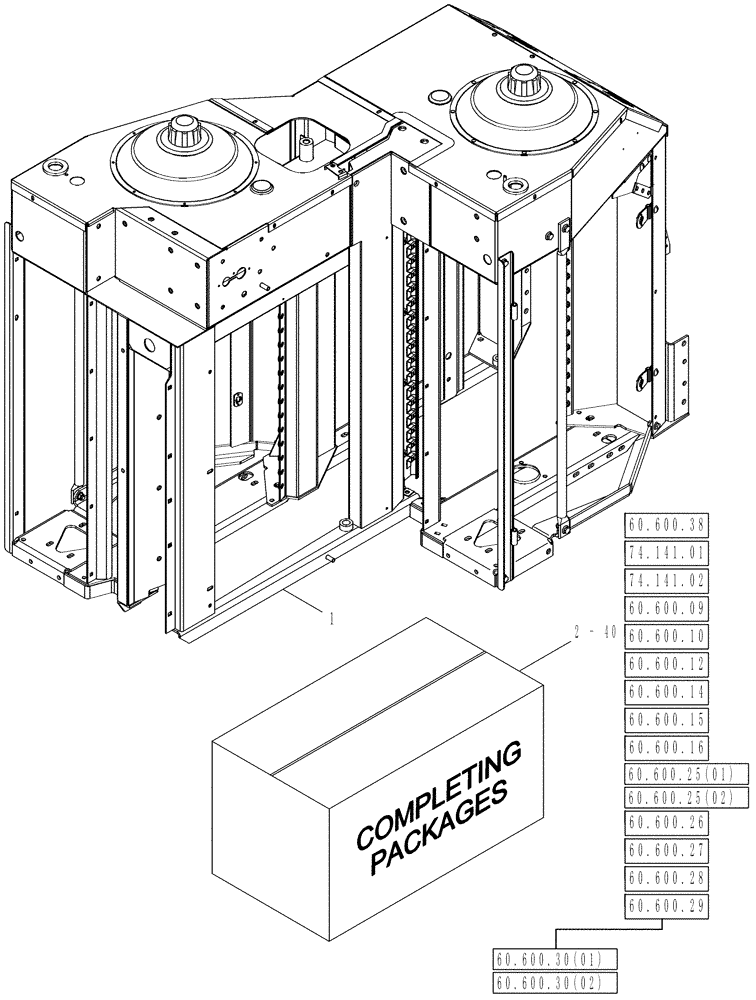

Запчасти Case IH 635 (60.600.41) - DRUM SERVICE ASSEMBLIES, COMPLETING PACKAGES 6 ROW WIDE (60) - PRODUCT FEEDING

87426425

DRUM

Assembly, Service, #1; Inc. 1 - 6, 8, 12, 13, 21, 22, 30, 32, 35

1шт.

87426426

DRUM

Assembly, Service, #2; Inc. 1 - 5, 7, 9, 12, 15, 18, 23, 31, 34, 37

1шт.

87426427

DRUM

Assembly, Service, #3; Inc. 1 - 6, 11, 16, 19, 24, 28, 30, 33, 37

1шт.

87426428

DRUM

Assembly, Service, #4; Inc. 1 - 6, 10, 17, 20, 25, 28, 30, 33, 38

1шт.

87426429

DRUM

Assembly, Service,#5; Inc. 1 - 5, 7, 10, 11, 15, 18, 26, 29, 31, 34, 39

1шт.

87426430

DRUM

Assembly, Service, #6; Inc. 1 - 6, 9, 11, 14, 19, 27, 30, 33, 40

1шт.

87426431

DRUM

Assembly, High Yield, Service, #1; Inc. 1 - 6, 8, 12,13, 21, 22, 30, 32, 35

1шт.

87426432

DRUM

Assembly, High Yield, Service, #2; Inc. 1 - 5, 7, 9, 12, 15, 18, 23, 31, 34, 36

1шт.

87426433

DRUM

Assembly, High Yield, Service, #3; Inc. 1 - 6, 11, 16, 19, 24, 28, 30, 33, 37

1шт.

87426434

DRUM

Assembly, High Yield, Service,#4; Inc. 1 - 6, 10, 17, 20, 25, 28, 30, 33, 38

1шт.

87426435

DRUM

Assembly, High Yield, Service, #5; Inc. 1 - 5, 7, 10, 11, 15, 18, 26, 29, 31, 34, 39

1шт.

87426436

DRUM

Assembly, High Yield, Service, #6; Inc. 1 - 6, 9, 11, 14, 19, 27, 30, 33, 40

1шт.

1

NSS

NOT SOLD SEPARAT

DRUM, Basic Service, With Covers and Harness

1шт.

2

87454849

PACKAGE

Rotor Doors

1шт.

3

87454857

PACKAGE

Front Outlets

1шт.

4

431245A1

PACKAGE

Front Nozzles

1шт.

5

87454858

PACKAGE

Rear Outlets

1шт.

6

431491A1

PACKAGE

Rear Nozzles

1шт.

7

431473A1

PACKAGE

Rear Nozzles

1шт.

8

431654A1

PACKAGE

Front Transition

1шт.

9

431655A1

PACKAGE

Front Transition

1шт.

10

431244A1

PACKAGE

Front Transition

1шт.

11

431475A1

PACKAGE

Rear Transitions

1шт.

12

431472A1

PACKAGE

Rear Transitions

1шт.

13

431647A1

PACKAGE

Front Extension

1шт.

14

431648A1

PACKAGE

Front Extension

1шт.

15

431243A1

PACKAGE

Front Extension

1шт.

16

431480A1

PACKAGE

Front Extension

1шт.

17

431496A1

PACKAGE

Front Extension

1шт.

18

431471A1

PACKAGE

Rear Extension

1шт.

19

431481A1

PACKAGE

Rear Extension

1шт.

20

431497A1

PACKAGE

Rear Extension

1шт.

21

431651A1

PACKAGE

Rear Extension

1шт.

22

431240A1

PACKAGE

Gearbox

1шт.

23

431634A1

PACKAGE

Gearbox

1шт.

24

431635A1

PACKAGE

Gearbox

1шт.

25

431636A1

PACKAGE

Gearbox

1шт.

26

431637A1

PACKAGE

Gearbox

1шт.

27

431280A1

PACKAGE

Gearbox

1шт.

28

433188A1

PACKAGE

Gearbox Completing

1шт.

29

433186A1

PACKAGE

Gearbox Completing

1шт.

30

414357A1

PACKAGE

Plant Lifter with Automatic Height Control

1шт.

31

414358A1

PACKAGE

Plant Lifter without Automatic Height Control

1шт.

32

448177A1

PACKAGE

Automatic Height Control Completing with Ladder Latch

1шт.

33

431241A1

PACKAGE

Automatic Height Control Completing without Ladder Latch

1шт.

34

431281A1

PACKAGE

Automatic Height Control Fillers

1шт.

35

431246A1

PACKAGE

Completing Parts

1шт.

36

431492A1

PACKAGE

Completing Parts

1шт.

37

431692A1

PACKAGE

Completing Parts

1шт.

38

431476A1

PACKAGE

Completing Parts

1шт.

39

431694A1

PACKAGE

Completing Parts

1шт.

40

431695A1

PACKAGE

Completing Parts

1шт.
