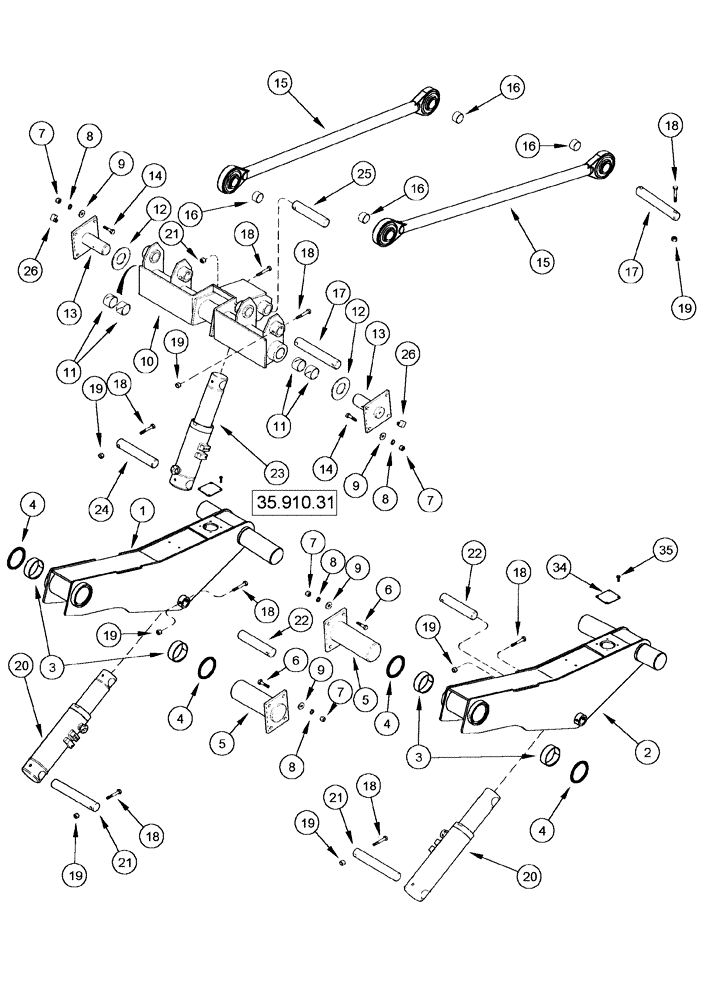

Запчасти Case IH 635 (60.600.37) - DRUM LIFT ARMS (60) - PRODUCT FEEDING

1

84518331

LIFT ARM

LH, Inc 3, 4, Painted CNH Black

1шт.

1

84160706

ARM, LIFT

LH, Inc 3, 4, Painted CNH Dark Grey

1шт.

2

84518348

LIFT ARM

RH, Inc 3, 4, Painted CNH Black

1шт.

2

84160701

ARM, LIFT

RH, Inc 3, 4, Painted CNH Dark Grey

1шт.

3

115792A1

BUSHING

2шт.

4

199246A1

SEAL,101.6mm ID x 123.98mm OD x 6.35mm Thk

Lift Arm Pivot

2шт.

5

417476A1

PIN

2шт.

6

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

7

329-108

NUT,1/2"-13, G8

18шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

16шт.

10

84164267

PIVOT ASSY.

Kickback, Inc. 11

1шт.

11

669644R1

BUSHING

4шт.

12

495-31238

WASHER,2.38" ID x 4.75" OD x 0.22" Thk

2шт.

13

1983044C1

PIN

Kickback Pivot

2шт.

14

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

8шт.

15

297464A1

LINK ASSY.

Rear Radius

2шт.

16

320425A1

SPACER

1-53/64 ID x 3-15/16

4шт.

17

1982990C2

PIN

4шт.

18

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

10шт.

19

231-4138

LOCK NUT,1/2"-13, GB

10шт.

20

87731913

LIFT CYLINDER,Double Acting, 88.9mm Rod, 271.5mm Stroke

Drum Lift

2шт.

21

348316A1

PIN,44.21mm OD x 280mm L

Lift Cylinder, Lower

2шт.

22

1983053C1

PIN

Lift Cylinder, Upper

2шт.

23

87416924

LIFT CYLINDER,88.9mm Rod, 184.7mm Stroke

102 mm ID x 185 mm stroke, Drum Tilt

1шт.

24

1982991C2

PIN

Kickback Cylinder, Lower

1шт.

25

1983053C2

PIN

Kickback Cylinder, Upper

1шт.

28

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

6шт.

30

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

(Not Shown)

1шт.

31

461-32516

HEX SOC SCREW,1/4"-20 x 1"

(Not Shown)

4шт.

32

112291A1

COVER

Switch Port

3шт.

33

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

34

87415938

COVER

2шт.

35

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

36

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

2шт.

515-25508

CLAMP,2", Insul, 1/2" Bolt

(Not Shown)

2шт.

425-286

FLANGE NUT,Flg, 3/8"-16, G5

(Not Shown)

1шт.

409-7612

BOLT,3/8"-16 x 1.09" OAL

(Not shown)

1шт.
