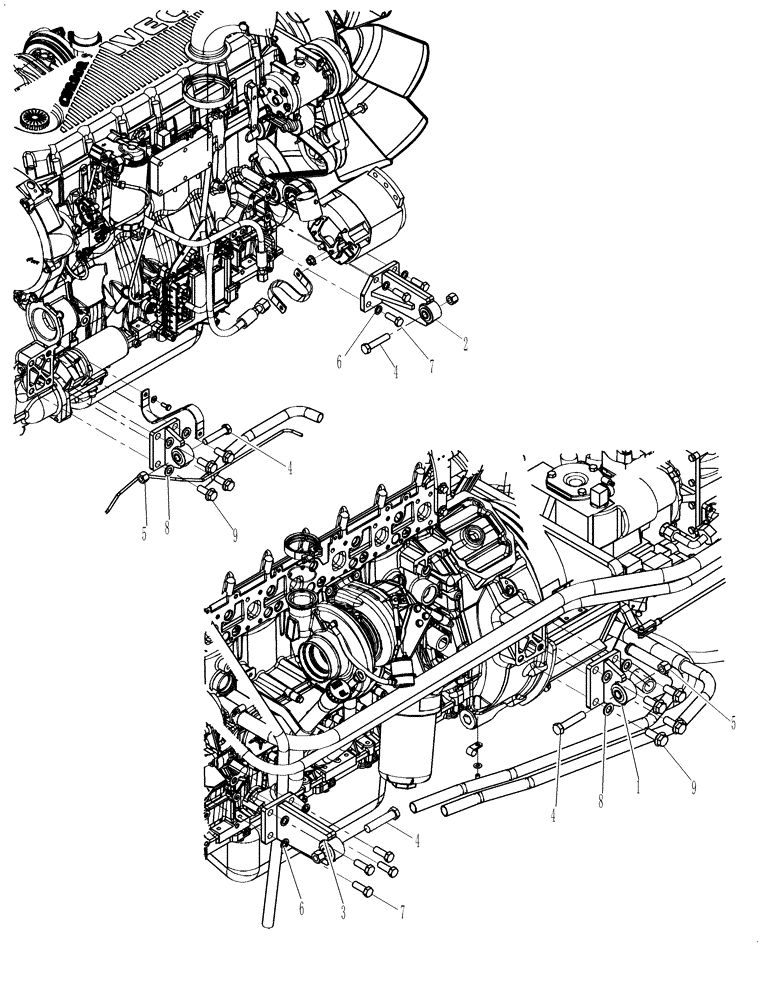

Запчасти Case IH 635 (10.012.01) - ENGINE MOUNTING ENGINE MOUNTING (10) - ENGINE

1

87483425

SUPPORT ASSY.

Engine Rear With Bushing,Left And Right Hand

2шт.

2

84123577

SUPPORT ASSY.

Engine Front With Bushing, Left Hand

1шт.

3

84123609

SUPPORT ASSY.

Engine Front With Bushing, Right Hand

1шт.

4

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

5

231-41110

LOCK NUT,5/8"-11, GB

4шт.

6

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

8шт.

7

87555733

BOLT,Hex, M14 x 40mm, Cl 10.9, Full Thd

M14X40

8шт.

8

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

8шт.

9

857-16040

BOLT,Hvy Hex, M16 x 40mm, Cl 10.9

8шт.
