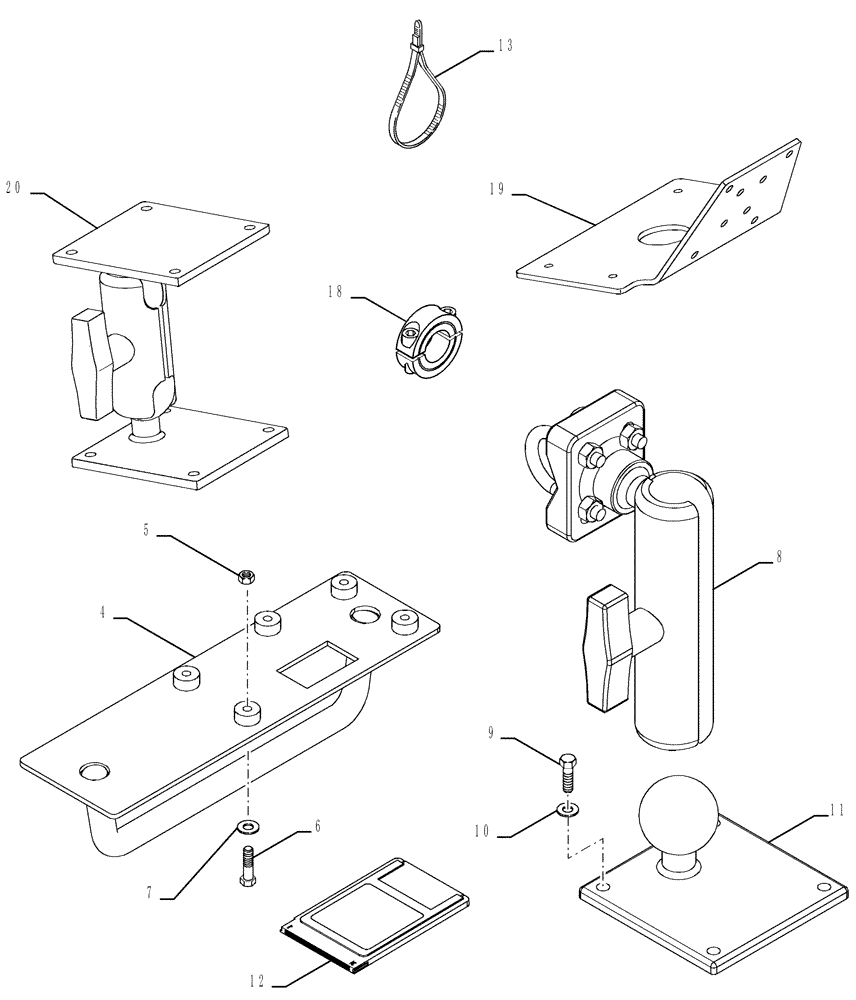

Запчасти Case IH 635 (55.785.03) - AFS YIELD MONITOR INTERFACE UNIT PACKAGE (55) - ELECTRICAL SYSTEMS

4

87387000

BRACKET

1шт.

5

131-893

CLIP,#10 - 24

2шт.

6

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

4шт.

7

195-81029

WASHER,#10

4шт.

8

87386396

MOUNT

Mount Color Display, Inc. 11

1шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

11

87386398

SUPPORTING ARM

Ram Square Mount

1шт.

12

84322404

MODULE,Memory Card, 4 GB

128 MB Compact Flash With Adapter

1шт.

13

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

12шт.

14

435831A1

FASTENER

Velcro (Not Shown)

1шт.

15

87606522

SOFTWARE

Software CIH Desktop V7 (Not Shown)

1шт.

16

87341265

SOFTWARE

ASSY 128 MB CF With Adapter (Not Shown)

1шт.

17

87607393

OPERATOR MANUAL EN

AFS PRO 600 Display (Not Shown)

1шт.

18

87602486

COLLAR

1шт.

19

87621924

BRACKET

Display Mounting

1шт.

20

87645133

BRACKET

Mount Color Display, Inc. 11

1шт.

21

425-284

FLANGE NUT,Flg, 1/4"-20.G5

Yield Monitor Not Taken Cover (Not Shown)

16шт.

22

87723974

PLATE

Yield Monitor Not Taken Cover (Not Shown)

8шт.
