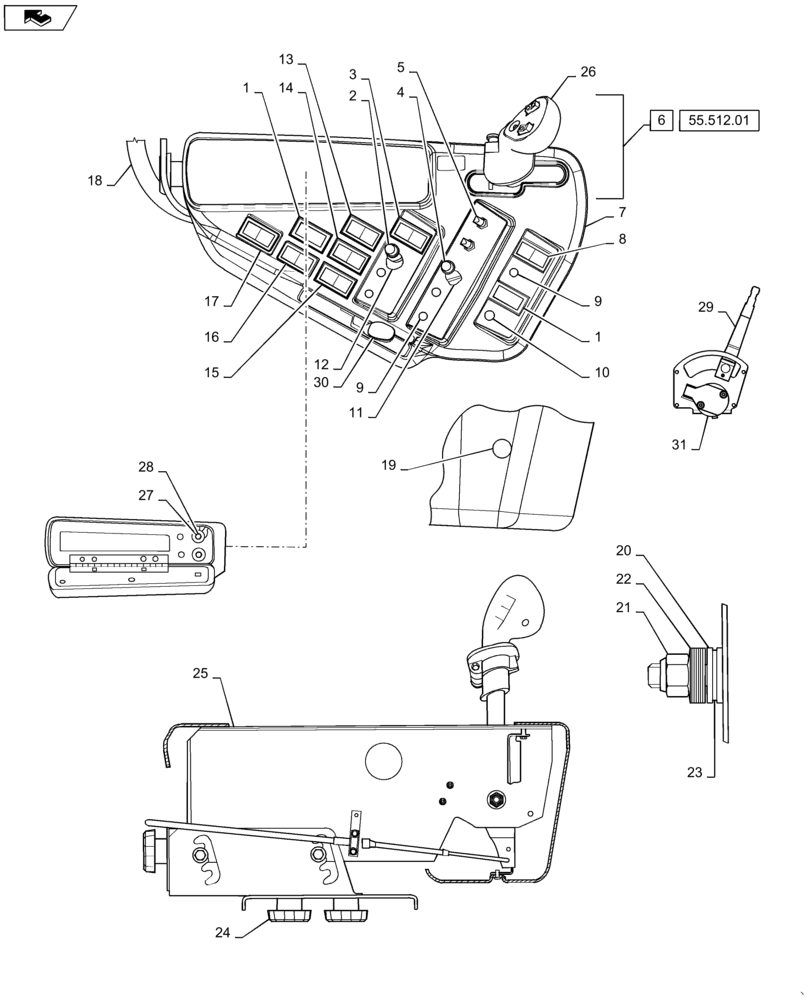

Запчасти Case IH 635 (55.510.02 [01]) - HARNESS CONSOLE (55) - ELECTRICAL SYSTEMS

1

245918C1

LENS

Plug

2шт.

2

118780A1

KNOB

Console Potentiometer

1шт.

3

184865A1

SWITCH

SWF Rocker (Moistener)

1шт.

4

337017A1

KNOB

Auger Compactor Switch

1шт.

5

121541C2

SWITCH

Drum Control

2шт.

6

87577357

CONTROL LEVER

Lever Assembly, Propulsion Control Ref 55.512.01

1шт.

7

87714835

COVER ASSY

Cover Assembly Right Hand Console

1шт.

8

187104A1

SWITCH

SWF Rocker O.P.S. Bypass

1шт.

9

353-402

PLUG,Dome, .375" hole, Nylon

6шт.

10

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

11

233945A2

SWITCH

2 Position Wipe/Wash

1шт.

12

114551A1

POTENTIOMETER,2500 Ohm, 500V

3шт.

13

447753A1

SWITCH

Rocker Basket/Drum

1шт.

14

124097A1

SWITCH

Hydraulic Lockout

1шт.

15

124104A1

FAN SWITCH

SWF Rocker Fan Engage

1шт.

16

241807A1

SWITCH

4 Wheel Drive Hi/Low

1шт.

17

124098A1

SWITCH

Parking Brake

1шт.

18

84181290

WIRE HARNESS

Console Wiring

1шт.

19

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

20

86625244

WASHER,0.47" ID x 1" OD x 0.1" Thk

2шт.

21

86637736

NUT,7/16"-14, GB

1шт.

22

1994980C1

BELLEVILLE WASHER

6шт.

23

159688R91

THRUST BEARING

1шт.

24

118781A1

KNOB

Console Adjustment

3шт.

25

345286A1

FRAME ASSY

Frame Assembly

1шт.

26

134071A1

KNOB

Throttle Control Ref. 55.512.01

1шт.

27

118780A1

KNOB

2шт.

28

114551A1

POTENTIOMETER,2500 Ohm, 500V

Drum Height Adjustment

2шт.

29

84385017

POTENTIOMETER

Throttle Control Assy

1шт.

30

134071A1

KNOB

Throtle Control Knob

1шт.

31

231426A1

POTENTIOMETER,2500 Ohm

1шт.
